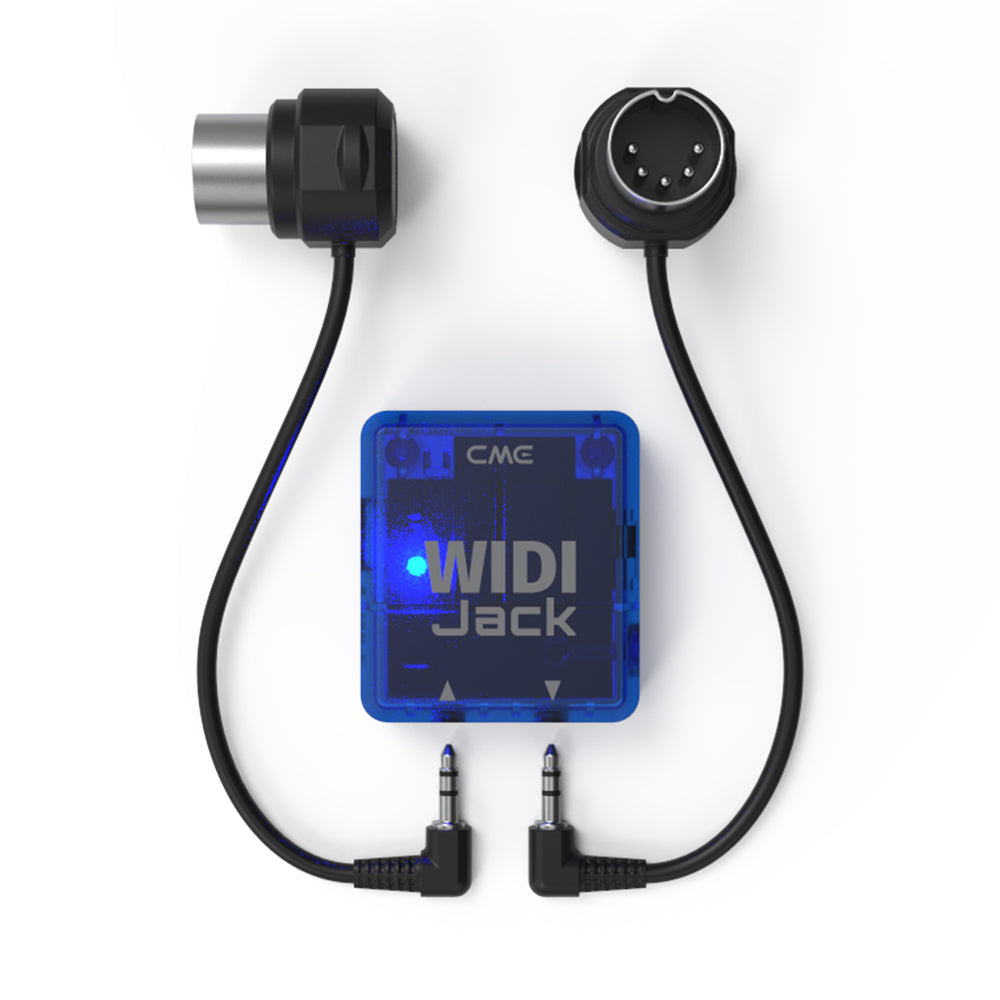

CME WIDI Jack + 25DIN5 Cables Bundle | Wireless Bluetooth MIDI Interface

Q: Do I need to buy two WIDI Jacks to link a hardware synthesizer to my computer?
A: No, you only need one single WIDI Jack bundle if your target is pairing a hardware instrument with a modern operating system. Modern macOS computers, iPhones, iPads, and Android mobile devices have built-in Bluetooth Low Energy (BLE) antennas. The WIDI Jack will pair directly to your computer or mobile device over the air using your OS settings or the free WIDI App. However, if you want to link two standalone hardware synths together across the room without any computer involved, you will need two separate WIDI units.

Q: Will the WIDI Jack work if my older analog synthesizer's MIDI ports don't supply power?
A: Yes, CME engineered the unit with a smart power backup system. While the majority of modern and classic instruments supply a steady 5V or 3.3V current directly through their physical MIDI OUT pin array to keep the WIDI Jack running without extra cords, some legacy gear lacks this voltage. If your synth's port doesn't supply power, simply connect a standard phone charger or a portable USB power bank to the WIDI Jack’s integrated USB-C port to power the device externally. (Note: The USB-C port is strictly for 5V power and does not transmit data).

Q: What does the little slide switch on the back of the WIDI Jack do?
A: The mini TRS ports on the bottom of the WIDI Jack can be toggled to match different cable wiring standards. While the included CME 25DIN5 cables are custom-wired to match the interface's native standard, the physical TRS polarity slide switch allows you to adapt the internal port routing to support alternative third-party Type-A or Type-B TRS mini-jack configurations without buying custom pin-swapped adapters.

Product Format: Wireless Bluetooth BLE MIDI Interface with Included 5-Pin DIN Cable Accessory Bundle

Wireless Protocol Standard: Bluetooth Low Energy (BLE) MIDI / Bluetooth 5 Core Architecture

Latency Threshold: Ultra-low latency transmission tracking as low as 3ms between two WIDI units

Included Accessories: 2 x CME 25DIN5 Cables (2.5mm mini-TRS Jack to 5-Pin DIN Male, 10cm length)

Bidirectional Routing: Simultaneous, fully independent dual-cable paths handling MIDI Input and MIDI Output streams concurrently

Power Supply Modes: Automatic 5V/3.3V parasitic bus-power drawn straight from the host device's MIDI OUT port, or externally powered via a 5V USB-C port

Data Capability Map: Flawless transmission of all standard MIDI messages, including Note, CC, Pitch Bend, MIDI Clock sync, MPE maps, and large SysEx dumps

Polarity Compatibility: Features an integrated physical slide switch on the back panel to toggle TRS polarity between Type-A and Type-B configurations

Wireless Grouping Engine: Supports multi-device wireless routing groups containing up to 5 WIDI nodes concurrently via the WIDI App

Interface Enclosure: Lightweight, high-impact composite shell with integrated magnetic mounting capability

Dimensions & Net Weight: 34 mm x 38 mm x 14 mm / Only 17 grams (Interface box profile)
