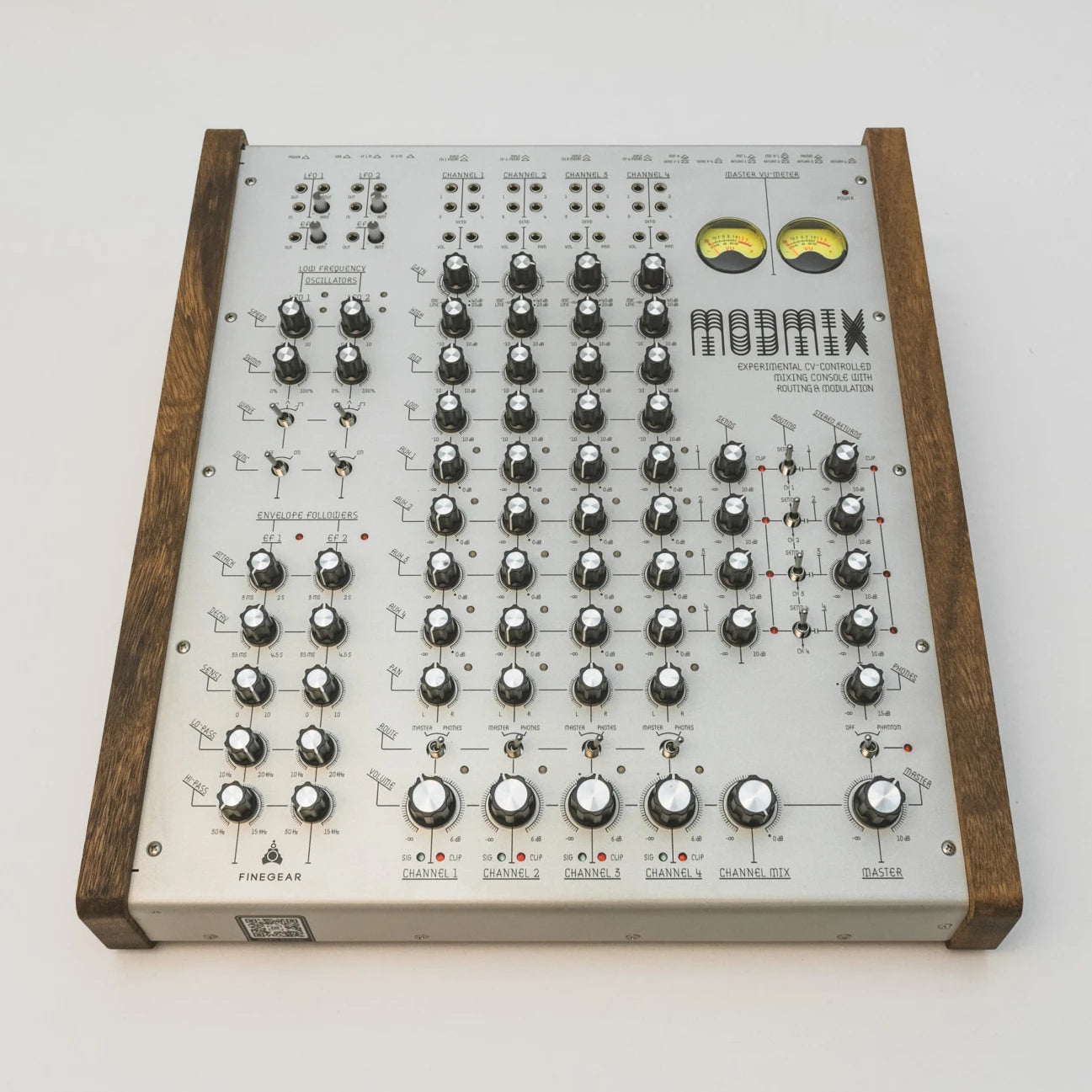

Finegear Modmix Experimental CV-controlled mixing console

 Channels

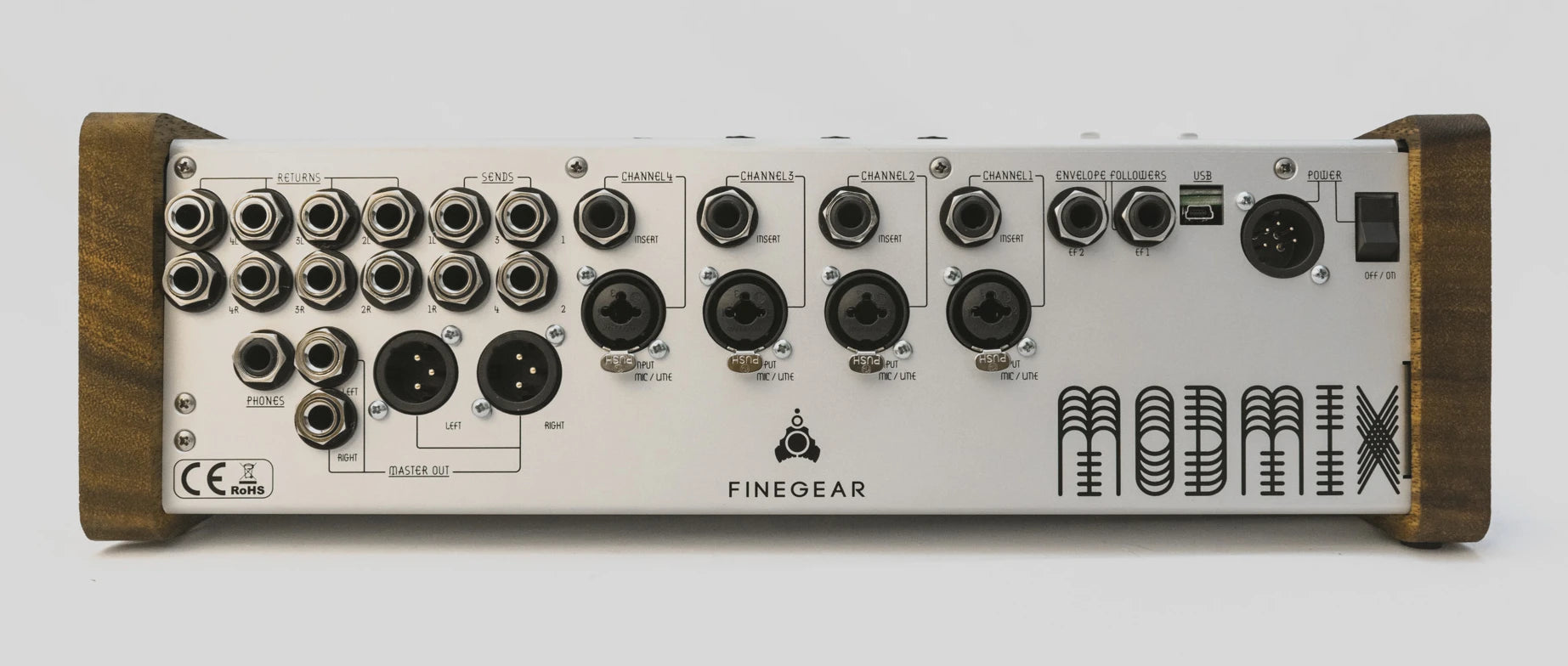

All of the 4 channels have an XLR/6.35mm jack combo for connecting either a microphone or line level signals (balanced or unbalanced). Together, the preamp, three-band EQ, and insert jack make for a transparent type of channel strip.

 Send/Returns

Modmix contains 4 effect-send buses and 4 stereo inputs. The stereo inputs can be used as either the returns for the effect buses, or as 4 extra stereo channels, or a combination thereof. Each effect send bus is sent to a corresponding  6.35 mm jack.

 CV control

In contrast, the 4 CV-controllable sends, CV-controllable panning and CV-controllable volume for each channel are as many gateways to new sonic territories.

 No-input synth

By the flick of a switch, each send can be re-routed to the corresponding channel: send 1 to channel 1, send 2 to channel 2 … turning Modmix into a no-input synth or “feedback effect” with surprising possibilities.

 Master section

The master section allows setting the channel mix level, the master level, the phones/cue level (each channel has a phones routing switch). Two analog vu-Meters are included to help monitor the output signal.

 CV modulation

Modmix includes two types of CV generators: two MIDI-syncable LFOs and two envelope followers. Use them to get started, to shape external sounds or to expand the weird and wonderful ways of feedback.

Mixing console with CV-modulation

At the heart of Modmix lies a 4-channels, 4-send/returns mixer. Then we added some CV sprinkles.

Modmix’s 4 channels are simple and transparent, providing a clean vehicle for all kinds of experimentation.

 Each of the channels has a line/microphone input, a preamp, a three band equalizer, an insert point as well as 4 effect send buses, panning controls and a volume knob.
 Each channel can be routed to the headphones output and/or muted (selectable through a jumper).
 The 4 returns are stereo and can also be used as extra inputs, if need be.
 The console has clipping LEDs on each channel and on the send outputs and the return inputs in order to help monitoring and gain staging.

While this may look like a classic format, we then took a rare, but refreshingly liberating direction, and added CV modulation for all of the channels’ 4 send amounts, panning and volume. Next, we added CV generators. With two LFOs and as many envelope followers, the Modmix is a new sort of modular monster!
