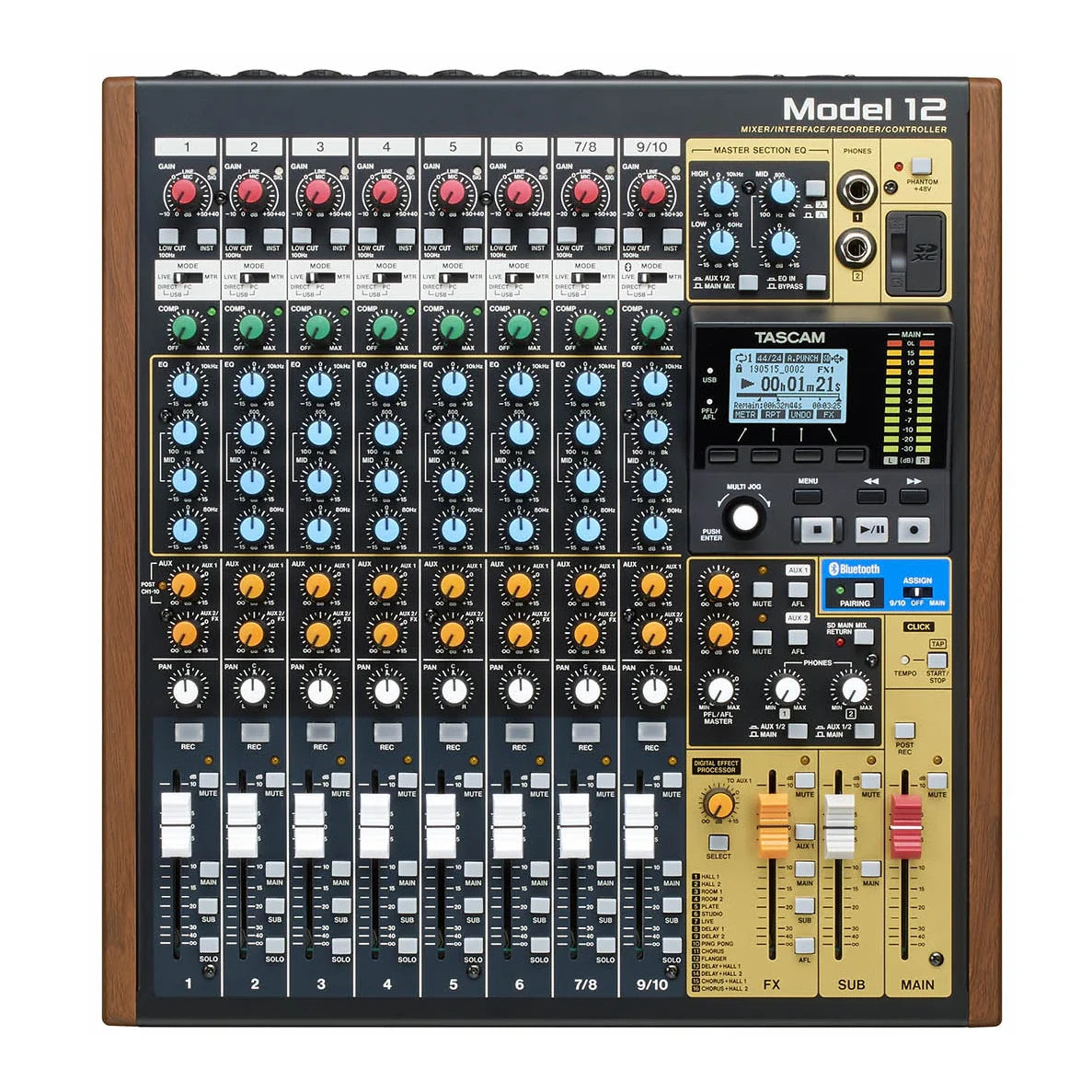

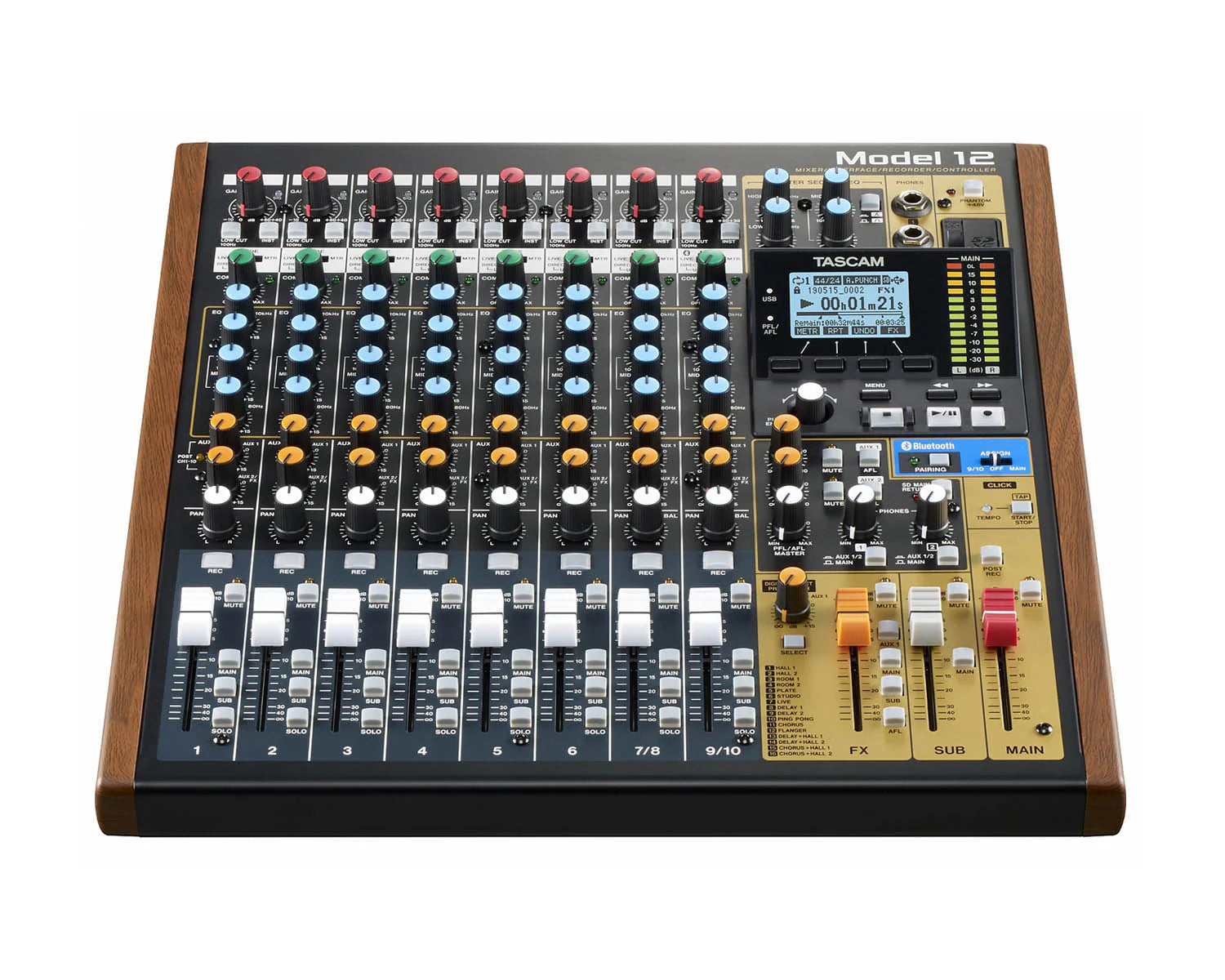

Tascam Model 12

Q: Can I use this to sync my gear?
A: Yes! The Model 12 is rare in the mixer world because it has 5-pin MIDI In/Out. It can send a MIDI clock to your gear so your recording stays perfectly in sync with your sequencers.

Q: Does it work as a "DAW-less" recorder?
A: Absolutely. You can record your entire live set to an SD card, then later take that SD card to your computer and drag the individual tracks into your DAW for final mixing.

Q: Can I use the on-board effects while recording?
A: Yes, you can choose to record your tracks "dry" (for mixing later) or "wet" (with the built-in reverbs and delays) depending on your workflow.

Q: Is it small enough for a live "backpack" rig?
A: It’s surprisingly compact for its power. At roughly 34cm wide and weighing just over 4kg, it fits comfortably into most medium-sized flight cases or gear bags.

Recorder

• Recording mediaSD (512 MB – 2 GB)SDHC (4–32 GB)SDXC (64–512 GB)Class 10 or higher required
• File system: FAT16 (SD), FAT32 (SDHC), exFAT (SDXC)
• Recording file format: WAV (BWF, maximum file size: 2 GB)
• Playback formats: WAV (BWF)
• Sampling frequency: 44.1 kHz, 48 kHz
• Bit depth: 16 bit, 24 bit
• Recordable channels: 12 channels max. (10 inputs + stereo mix)

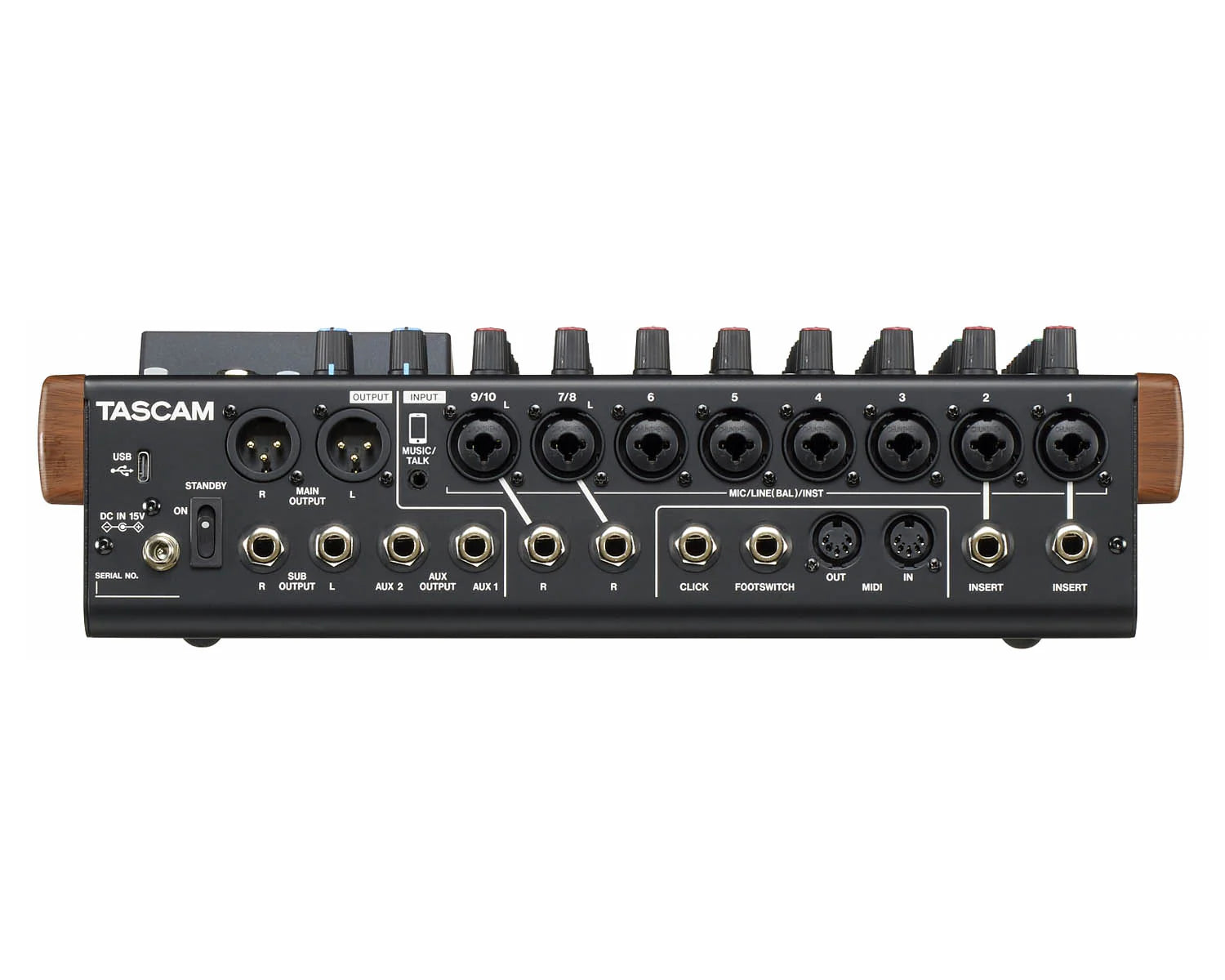

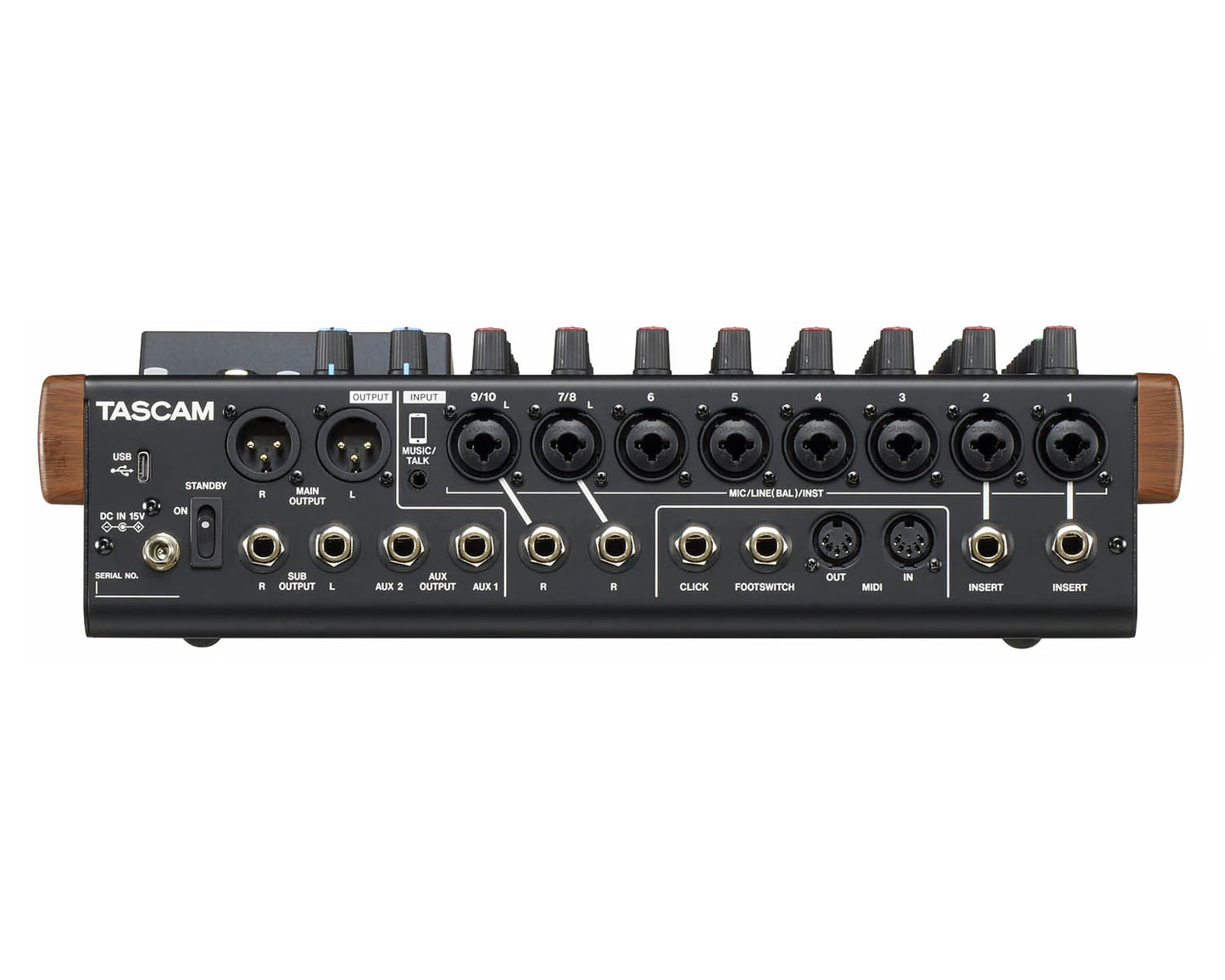

Audio inputs and outputs

• Microphone inputs (CH 1–6, 7/8, 9/10): XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD)Nominal input level: –8 dBuMaximum input level: +10 dBuMinimum input level: –58 dBuGain adjustable range: 0–50 dBInput impedance: 1.8 kΩ
• Line inputs (CH 1–10)6.3-mm TRS phone jack, balanced(Tip: HOT, Ring: COLD, Sleeve: GND)Nominal input level: +4 dBuMaximum input level: +22 dBuGain adjustable range–10 dB to +40 dB (CH 1–6)–20 dB to +30 dB (CH 7/8, 9/10)Input impedance: 22 kΩ
• Instrument inputs (CH 1–6, 7, 9): 6.3-mm TS phone jack, unbalanced (Tip: HOT, Ring: GND, Sleeve: GND)Nominal input level: –4.2 dBVMaximum input level: +13.8 dBVGain adjustable range–10 dB to +40 dB (CH 1–6)–20 dB to +30 dB (CH 7, 9)Input impedance: 1 MΩ
• Inserts (CH 1–2): 6.3-mm TRS phone jack (Tip: SEND, Ring: RETURN, Sleeve: GND)Nominal input level: 0 dBuMaximum input level: +18 dBuInput impedance: 5 kΩNominal output level: 0 dBuMaximum output level: +18 dBuOutput impedance: 100 Ω
• Music/Talk input (CH 9/10): 3.5-mm TRRS mini jack, unbalancedMaximum input level: +8 dBVNominal input level: –10 dBVInput impedance: 10 kΩ
• Main output: XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD)Nominal output level: +4 dBuMaximum output level: +22 dBuOutput impedance: 200 Ω
• Sub output, Aux output: 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)Nominal output level: –2 dBuMaximum output level: +16 dBuOutput impedance: 200 Ω
• Phones output ½: 6.3-mm stereo phone jackMaximum output power: 45 mW + 45 mW (at 32 Ω)
• Footswitch connector: 6.3-mm TS phone jack (Tascam genuine footswitch RC-1F recommended)

EQ

• Channel EQLow cut: 100 Hz, –12 dB/Oct.High (shelving): 10 kHz, ±15 dBMid (peaking)variable 100 Hz to 8 kHz, ±15 dB (Mono)fixed 600 Hz, ±15 dB (Stereo)Q = 0.5Low (shelving): 80 Hz, ±15 dB
• Master EQHigh (shelving): 10 kHz, ±15 dBMid (peaking): variable 100 Hz to 8 kHz, ±15 dB, Q = 0.5/5

Audio performance

• Residual output noise: –103 dBu (MAIN OUT, MAIN fader at nom.)
• Equivalent input noise (EIN): –128 dBu (Mono input channel at 150 Ω, GAIN at max.)
• Total harmonic distortion (THD+N): <0.003 % (MIC IN-> MAIN OUT, 1 kHz, GAIN at min., +2 dBu)
• Frequency response: 20 Hz to 20 kHz, +0.1/–0.15 dB (MIC IN-> MAIN OUT)
• Channel crosstalk: 95 dB (1 kHz, PAN fully counter-clockwise / fully clockwise)
• Maximum gain74 dB (MIC to MAIN OUT)50 dB (MIC to INSERT OUT)74 dB (MIC to SUB OUT)75 dB (MIC to AUX 1/2 OUT)24 dB (USB/SD to MAIN OUT)(all EQs flat, PAN fully counter-clockwise / fully clockwise)
• Phantom Power: DC 48 V

Computer system requirements

• WindowsCompatible computers: Windows-compatible computer with a USB 2.0 (or higher) portCPU type/speed: Dual core, 2 GHz or fasterMemory: 2 GB or moreDrivers: USB Audio Class 2.0, ASIO 2.0, WDM (MME)Screen resolution: 1280 px × 800 px or more
• MacintoshCompatible computers: Apple Mac computer with a USB 2.0 (or higher) portCPU type/speed: Dual core, 2 GHz or fasterMemory: 2 GB or moreDriver: Core AudioScreen resolution: 1280 px × 800 px or more
• USB audio specificationsSampling rate: 44.1 kHz, 48 kHzBit depth: 16 bit, 24 bitMaximum number of audio channels: 12 inputs, 10 outputs
• Bluetooth®: Version 5.0Output classClass 2(approximate transmission distance: 10 m)* The transmission distance is approximate. The transmission distance could vary depending on the surrounding environment and electromagnetic disturbances.Supported profile: A2DPSupported A2DP codecs: SBC, AACA2DP content protection: SCMS-T

Power supply and other specifications

• Power supply: Tascam AC adapter (included, input voltage AC 100–240 V, 50/60 Hz)
• Power consumption: 16 W
• Dimensions (W × D × H, overall): 343 mm × 360 mm × 99 mm
• Weight: 4.3 kg
• Permissible operating temperature range: 5–35 °C
• Included items: AC adapter, USB Type-C to A cable, TRRS cable, Owner’s manual incl. warranty

True Standalone Power: Record up to 12 tracks (10 inputs + stereo mix) directly to an SD card at 24-bit/48kHz. No computer required for your jam sessions.

The MIDI Bridge: Unlike most compact mixers, the Model 12 features 5-pin MIDI In/Out. It can act as the master clock for your entire rig or sync to your external sequencer.

Ultra-HDDA Preamps: 6 clean, transparent mic preamps with +48V phantom power, perfect for capturing the nuances of high-end boutique synths.

Tactile Workflow: 60mm faders, 3-band sweepable EQ, and one-knob compressors give you immediate, analog-style control over your mix.

Smartphone Integration: Includes a TRRS input with "Mix-Minus" for easily sampling from a phone or integrating a remote caller into a podcast/stream.
