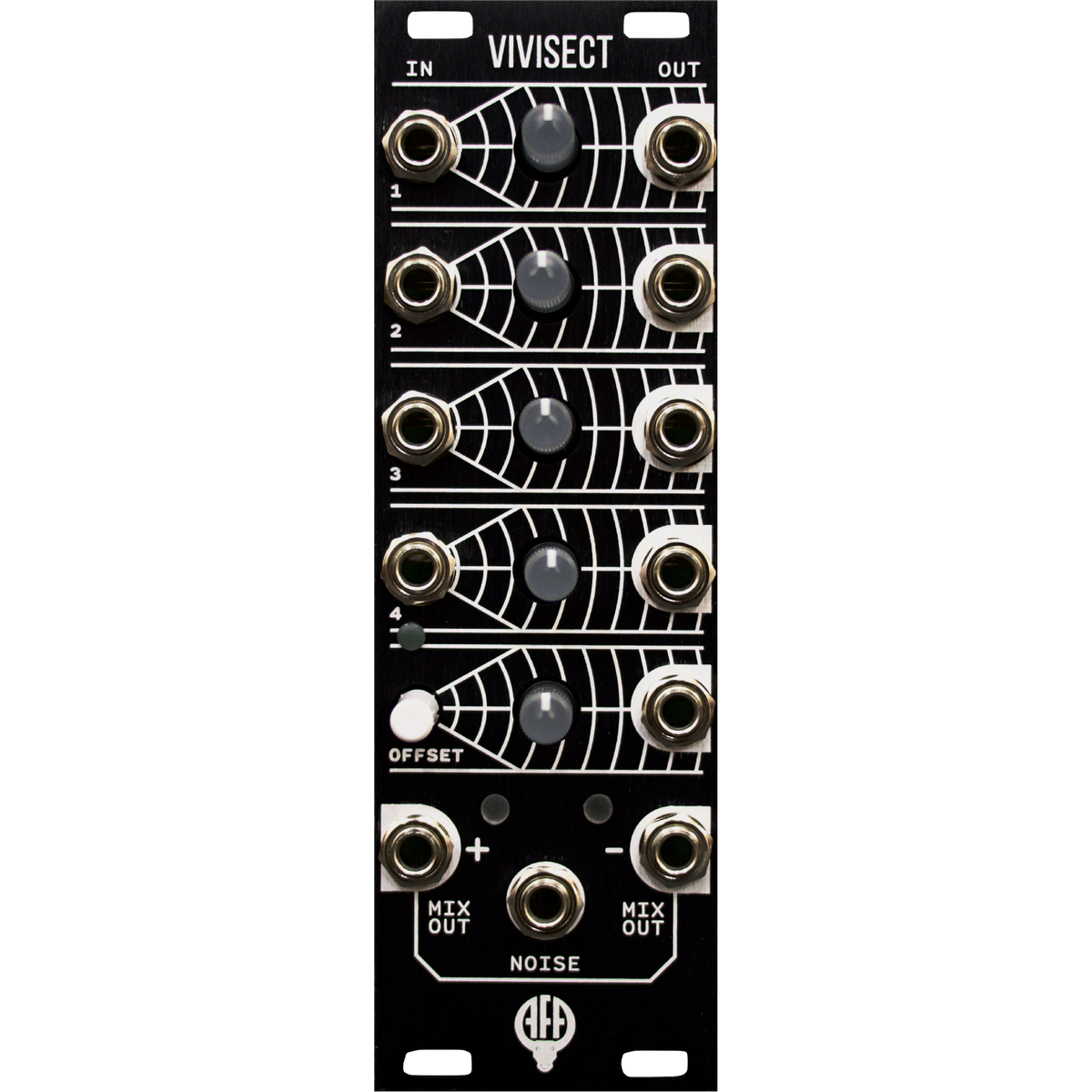

  • Animal Factory Vivisect Eurorack 4-Channel Signal Processor / Offset & Noise Module

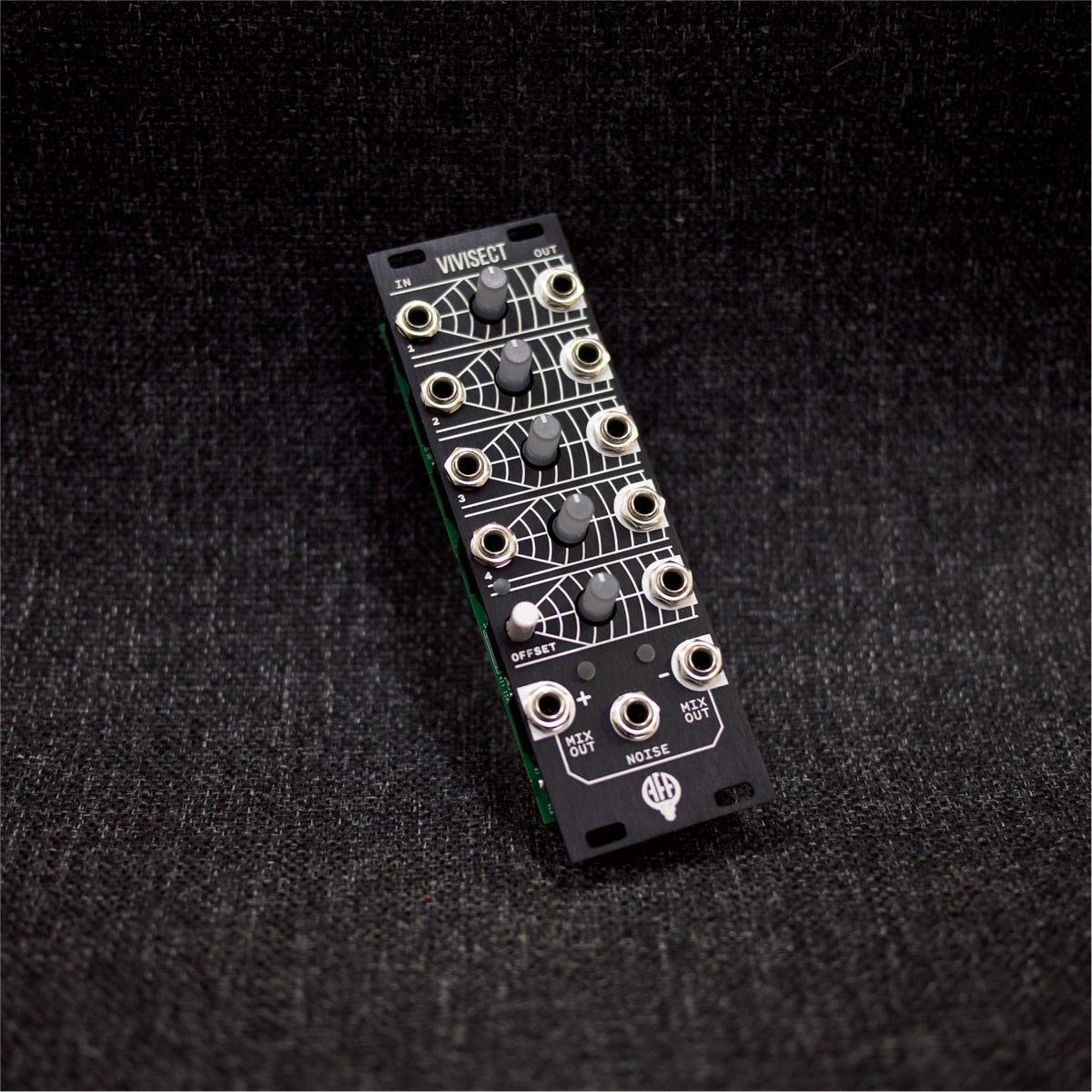

  • Animal Factory Vivisect Eurorack 4-Channel Signal Processor / Offset & Noise Module - View 2

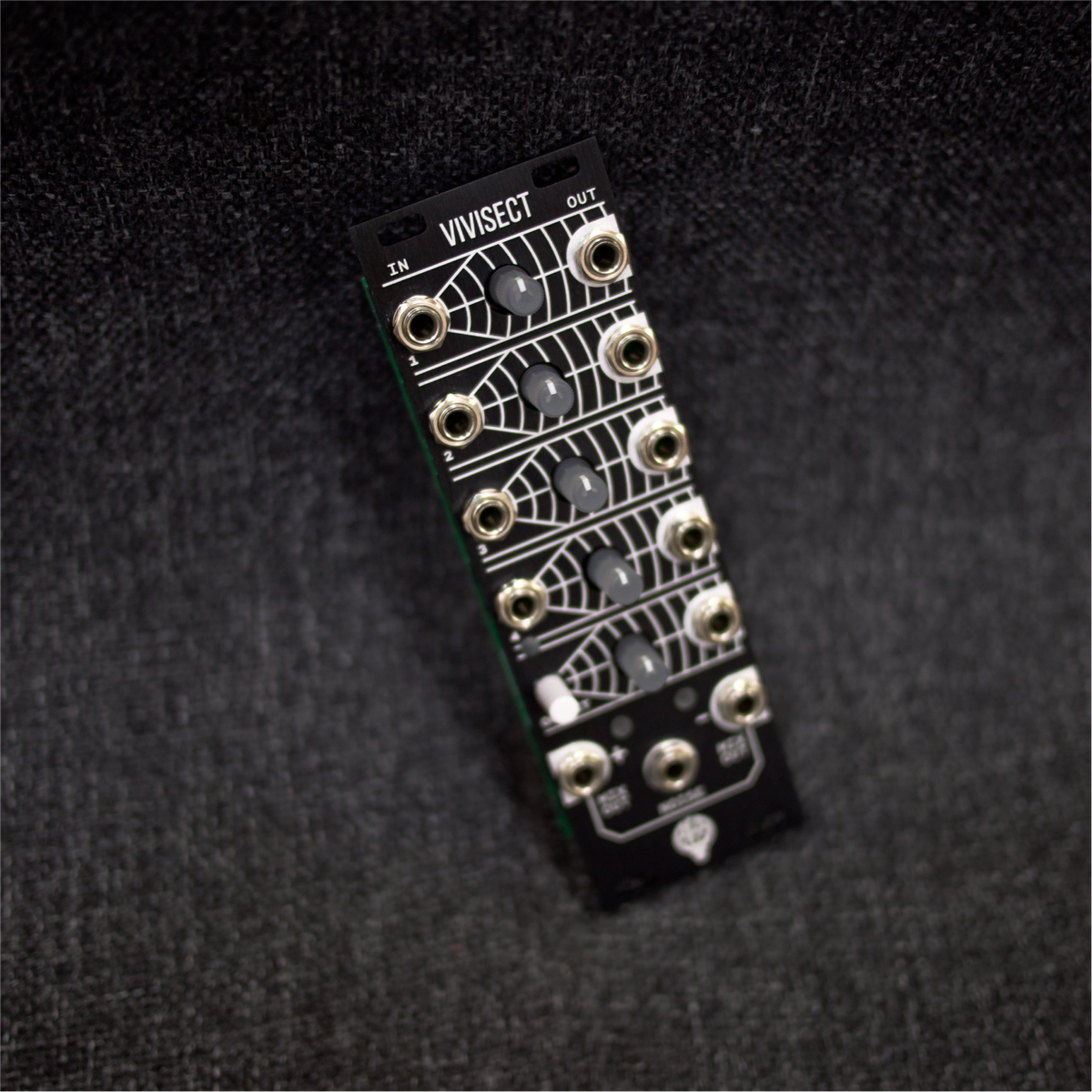

  • Animal Factory Vivisect Eurorack 4-Channel Signal Processor / Offset & Noise Module - View 3

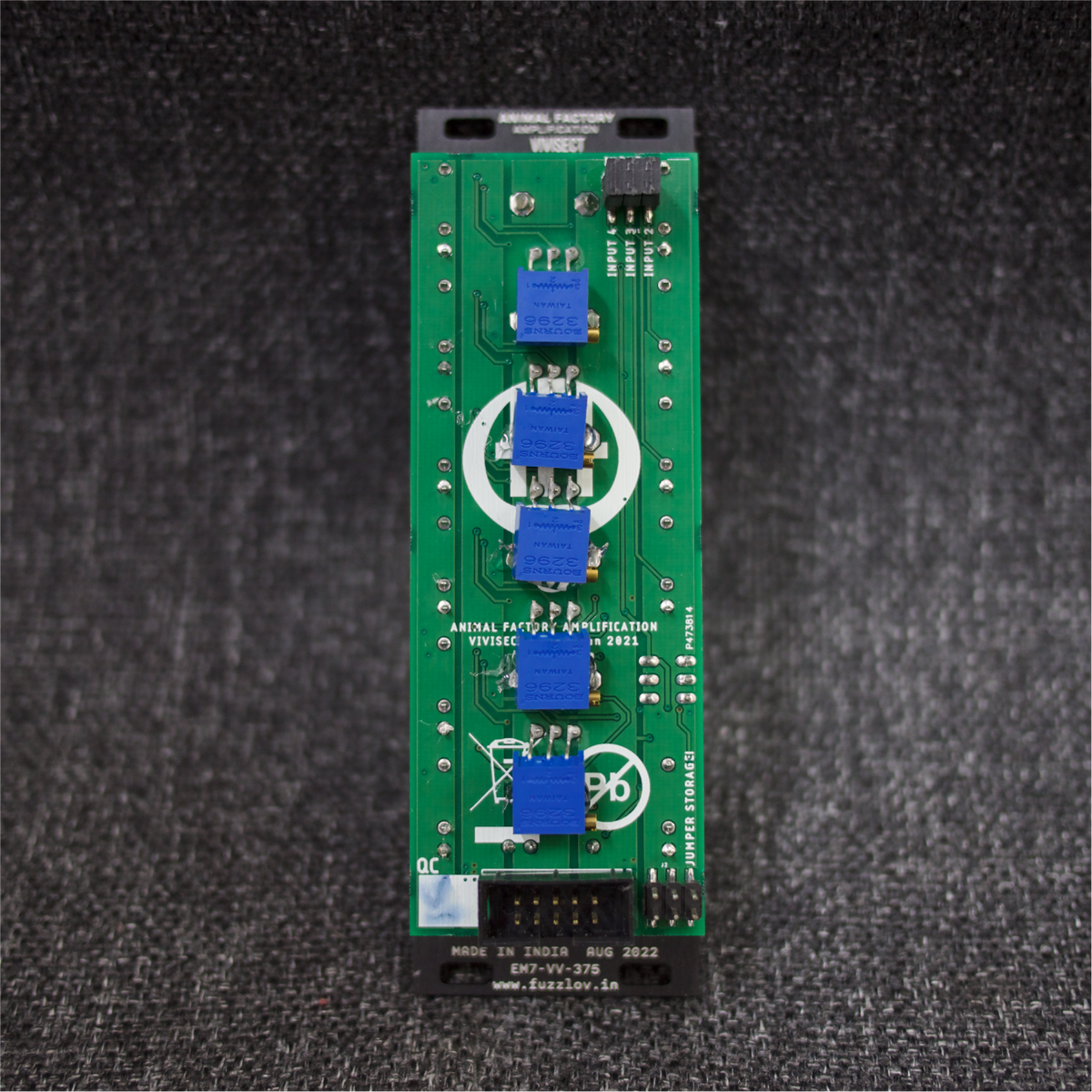

  • Animal Factory Vivisect Eurorack 4-Channel Signal Processor / Offset & Noise Module - View 4
1 4
Animal Factory AmplificationAttenuverterBoutiqueDesirableEurorackHARDWAREMixerModule
• Available for Pre-order

Animal Factory Vivisect Eurorack 4-Channel Signal Processor / Offset & Noise Module

Animal Factory Vivisect Eurorack 4-Channel Signal Processor / Offset & Noise Module

£105.00 GBP
£105.00 GBP
Sale Sold out
  • Loyalty Reward Earn £2.10 in Loot Credits with this purchase.
  • UK shipping Price includes UK VAT. No hidden customs charges.
  • Loot Synergy 2% of your total order back in Loot Credits for use at lootaudio.com.
  • Authorized Retailer Official UK partner. Full manufacturer warranty.

Animal Factory Vivisect is a deep, versatile 4-channel CV and signal processor, attenuverting mixer, precision voltage offset, and analog noise source. Designed to perform surgical operations on control voltages and audio signals, Vivisect is an indispensable Swiss Army knife for any modular rack.

Each of the four channels features a center-detent bipolar attenuverter with an independent output jack. When output jacks are unpatched, signals cascade cleanly into a master summing bus. A dedicated switchable +/-5V DC offset can be engaged to shift control voltages into ideal modulation ranges, while an independent white noise generator provides analog randomness and percussion synthesis sources.

Rear jumpers allow normalising inputs 2, 3, and 4 to Input 1 for multi-buffered distribution, and an expansion header directly links to the Animal Factory Bonesaw filter for multi-band pole mixing.

Scope of delivery: Animal Factory Vivisect module, Eurorack power ribbon cable, M3 mounting screws.

FAQs

Q: Can Vivisect process audio signals as well as CV?
A: Yes! While optimised for CV attenuversion and mixing, it works great on audio. Note that due to phase-cancellation topology, fast audio signals may show minor bleed at true zero.

Q: How does the input normalisation work?
A: Rear PCB jumpers allow Input 1 to normalise across channels 2, 3, and 4, turning Vivisect into a buffered mult that can simultaneously output inverted, attenuated, and offset copies of a single source.

Specifications

- Width: 10 HP
- Depth: 25 mm (Skiff friendly)
- Current Draw: +12V: 40 mA, -12V: 35 mA, 5V: 0 mA
- Audio/CV I/O: 4x Channel Inputs, 4x Channel Outputs, Sum Out, Inverted Sum Out, White Noise Out (3.5mm)
- Switches: 4x 3-position toggle switches (+5V offset / 0 / -5V offset)
- Build: Black anodised aluminium faceplate, clear shaft center-detent pots

Features

- Four precision bipolar attenuverter channels with center-detented potentiometers for instant zero calibration
- Master summing bus allows combining multiple LFOs, envelopes, or sequences into complex modulation shapes
- Switchable precision +/-5V DC voltage offset generator for biasing modulation destinations
- Dedicated analog white noise output jack for percussion synthesis, audio textures, or sample-and-hold
- Rear expansion link connects directly to Animal Factory Bonesaw filter for 3-band pole-mixing EQ
