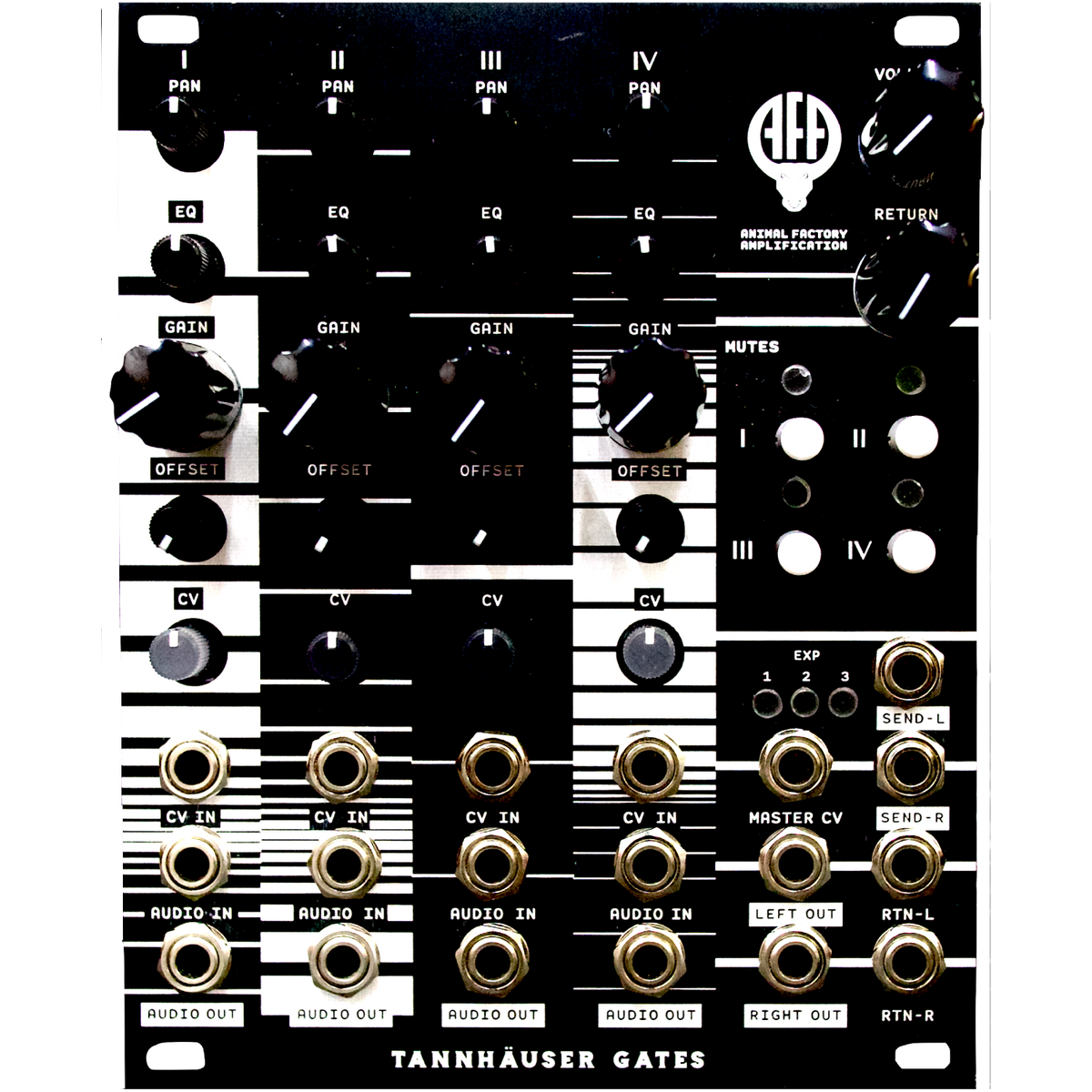

  • Animal Factory Tannhäuser Gates Eurorack Quad VCA / Mixer System

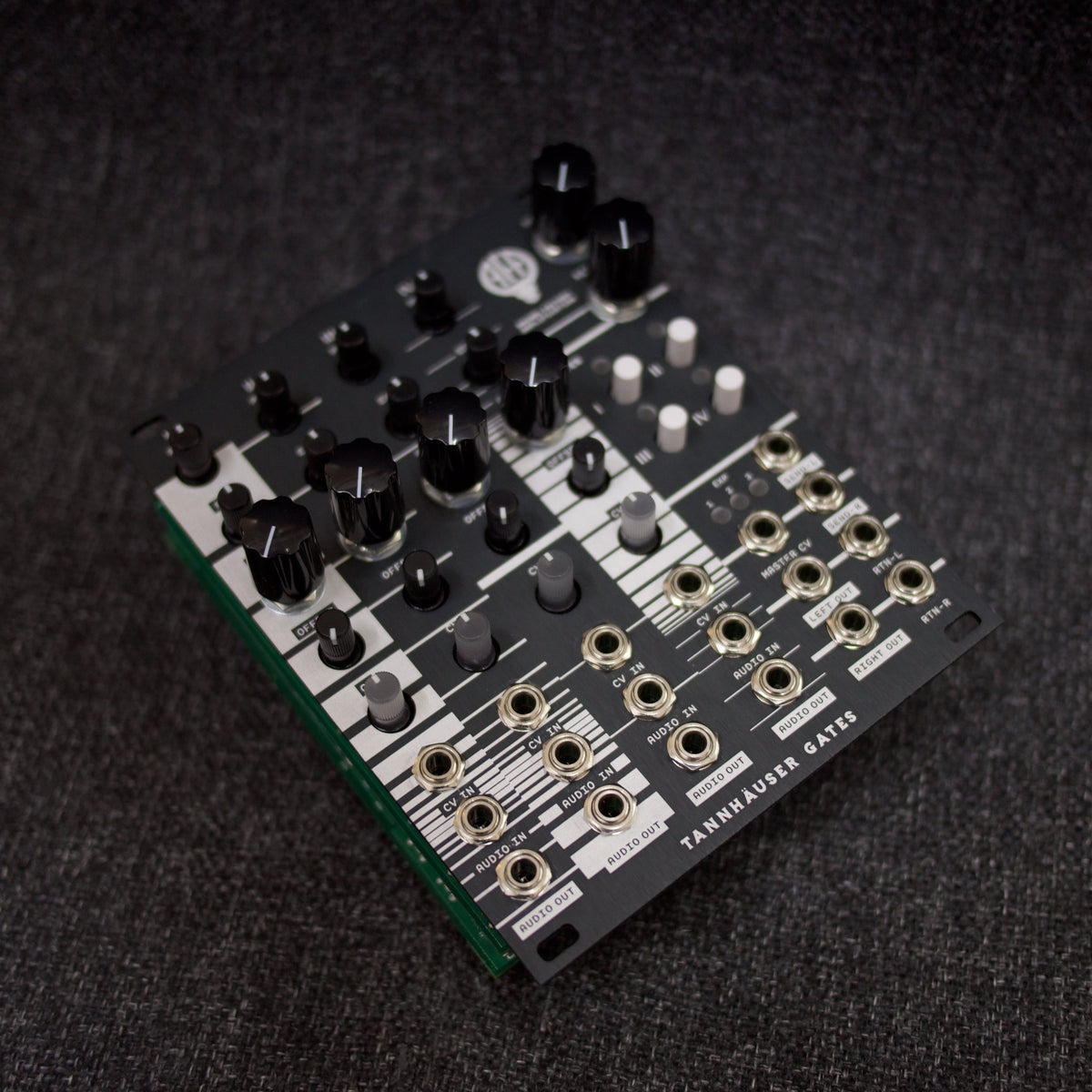

  • Animal Factory Tannhäuser Gates Eurorack Quad VCA / Mixer System - View 2

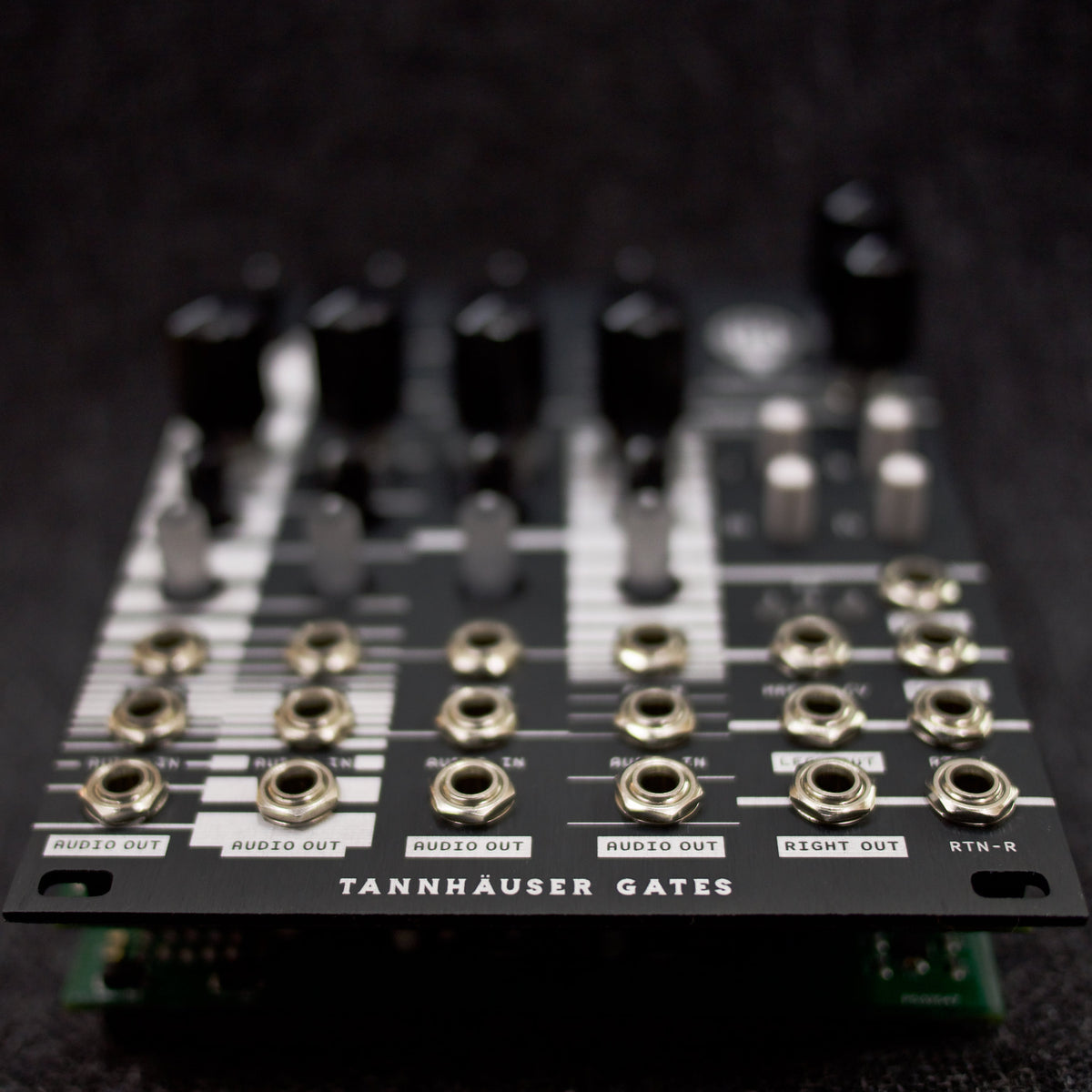

  • Animal Factory Tannhäuser Gates Eurorack Quad VCA / Mixer System - View 3

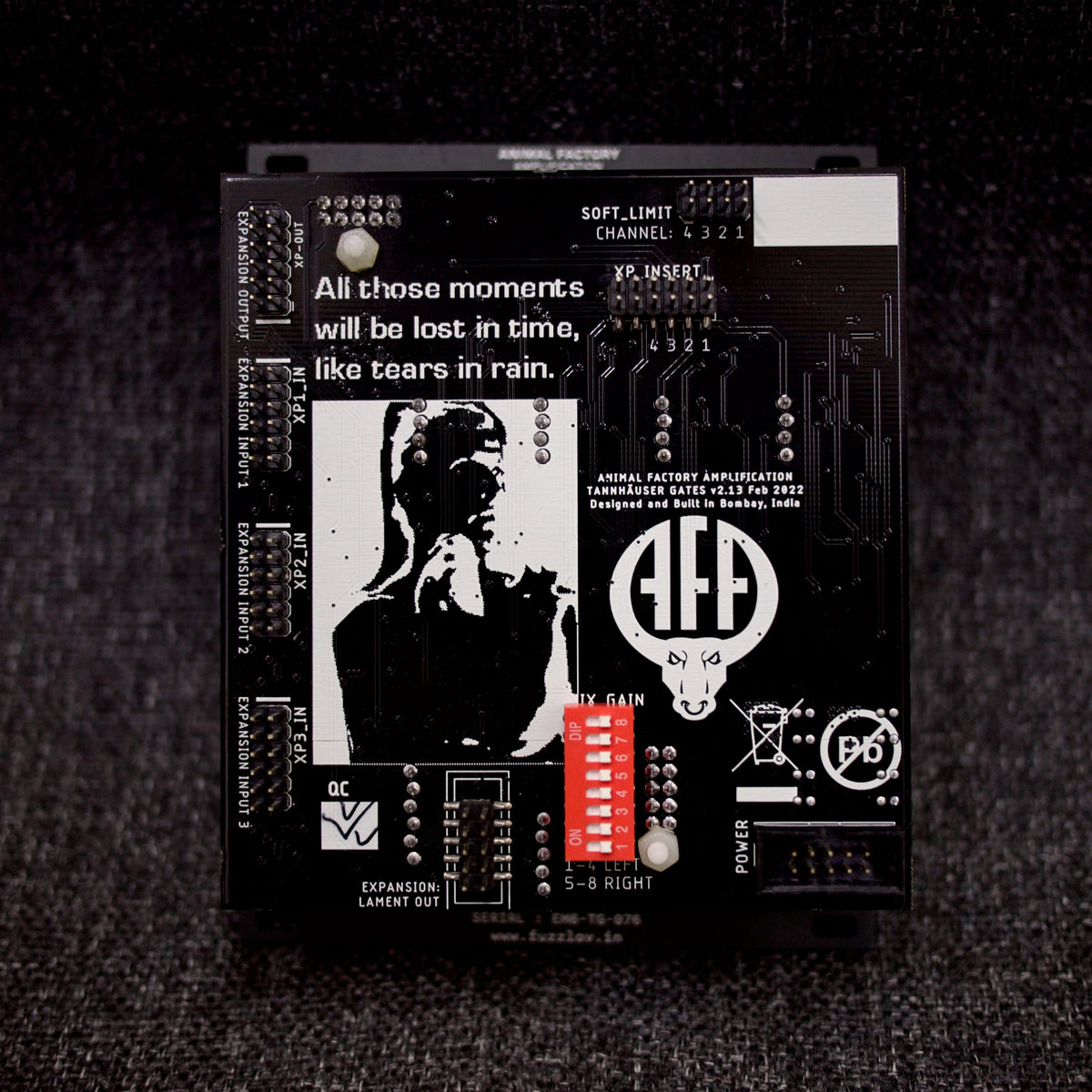

  • Animal Factory Tannhäuser Gates Eurorack Quad VCA / Mixer System - View 4
1 4
Animal Factory AmplificationBoutiqueDesirableEurorackHARDWAREMixerModulePanning
• Available for Pre-order

Animal Factory Tannhäuser Gates Eurorack Quad VCA / Mixer System

Animal Factory Tannhäuser Gates Eurorack Quad VCA / Mixer System

£329.00 GBP
£329.00 GBP
Sale Sold out
  • Loyalty Reward Earn £6.58 in Loot Credits with this purchase.
  • UK shipping Price includes UK VAT. No hidden customs charges.
  • Loot Synergy 2% of your total order back in Loot Credits for use at lootaudio.com.
  • Authorized Retailer Official UK partner. Full manufacturer warranty.

Animal Factory Tannhäuser Gates is a boutique 4-channel discrete VCA, stereo mixer, and performance routing hub inspired by the legendary Buchla 110 Voltage Controlled Gate. Featuring four warm discrete VCAs with rich overdrive characteristics, per-channel mute switches, stereo panning, single-knob tilt EQs, and a dedicated stereo send/return loop, it forms the command center of any modular performance rig.

Each channel can function independently as an isolated mono VCA or sum directly into the stereo master output bus. The CV inputs feature attenuverters that allow effortless sidechain ducking or envelope expansion, while normalising to a Master CV jack for simultaneous 4-voice modulation.

Engineered for modular growth, Tannhäuser Gates features rear expansion headers allowing you to chain up to four modules together, creating a comprehensive 16-channel performance mixer system summed to a single stereo output.

Scope of delivery: Animal Factory Tannhäuser Gates module, 10-to-16 pin Eurorack power ribbon cable, M3 mounting screws.

FAQs

Q: Can I use Tannhäuser Gates for sidechain ducking?
A: Yes! Because the channel CV inputs feature attenuverters, sending a positive envelope to an inverted CV channel automatically ducks the audio signal whenever the kick drum hits.

Q: How does chaining multiple modules work?
A: The rear PCB includes expansion headers. Simply connect additional Tannhäuser Gates modules via flat ribbon cables to sum up to 16 channels cleanly into a single stereo output without patching cords on the front panel.

Specifications

- Width: 18 HP
- Depth: 25 mm (Skiff friendly)
- Current Draw: +12V: 110 mA, -12V: 95 mA, 5V: 0 mA
- Audio I/O: 4x Audio In, 4x Direct Out, Left/Right Master Out, Stereo Send/Return (3.5mm mono)
- CV I/O: 4x Channel CV In (with attenuverters), 1x Master CV In
- Build: Black anodised aluminium faceplate with high-reliability toggle switches

Features

- Four discrete analog VCAs delivering warm, musical saturation when driven into hot modular levels
- Ultra-quiet per-channel clickless mute switches for flawless live performance mixing
- Individual single-knob Tilt EQ and Stereo Panning controls on every channel
- True stereo FX Send and Return routing loop for inserting external delays, reverbs, and processors
- Expandable architecture: chain up to 4 modules for a massive 16-channel Eurorack mixing console
