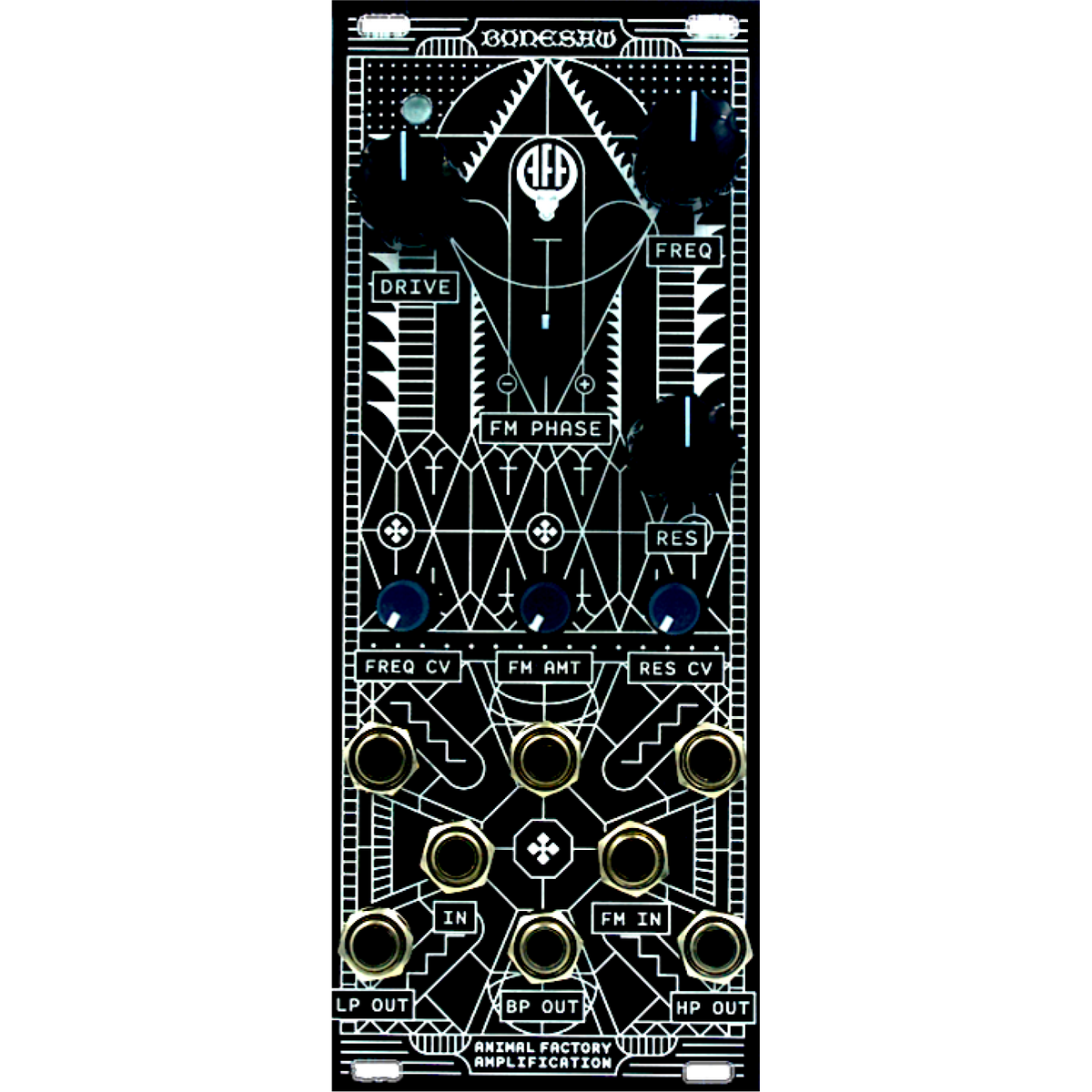

  • Animal Factory Bonesaw Eurorack State-Variable Filter Module

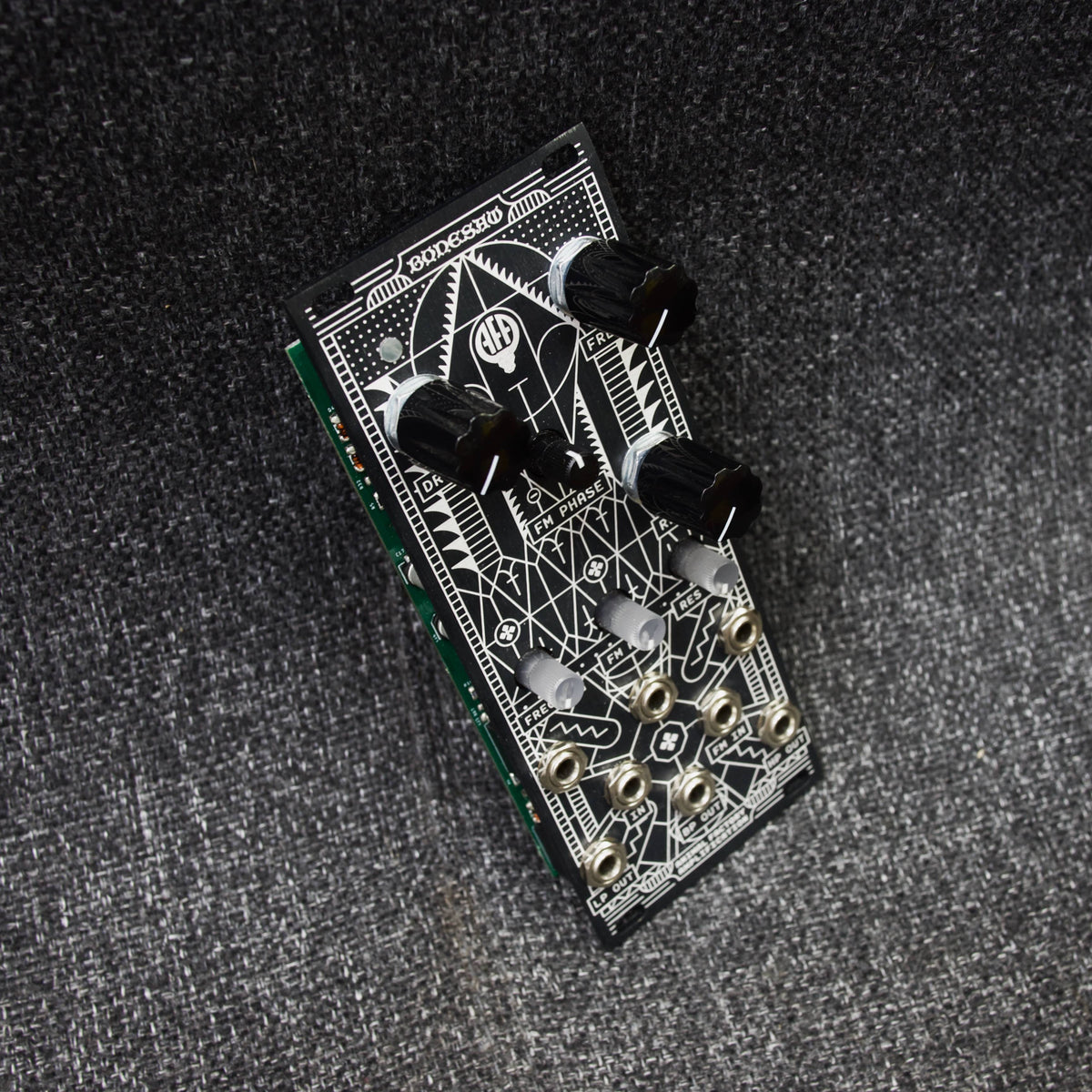

  • Animal Factory Bonesaw Eurorack State-Variable Filter Module - View 2

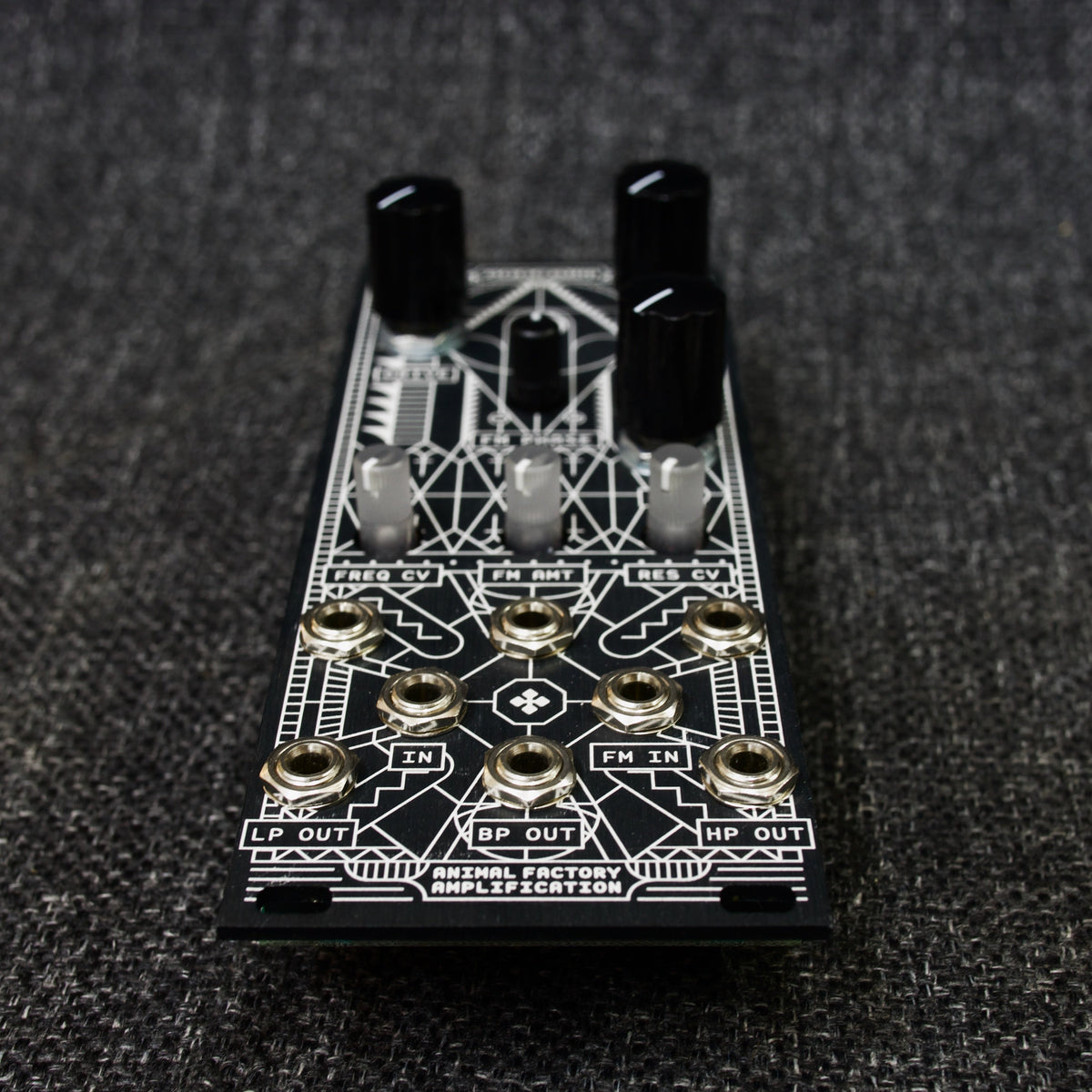

  • Animal Factory Bonesaw Eurorack State-Variable Filter Module - View 3

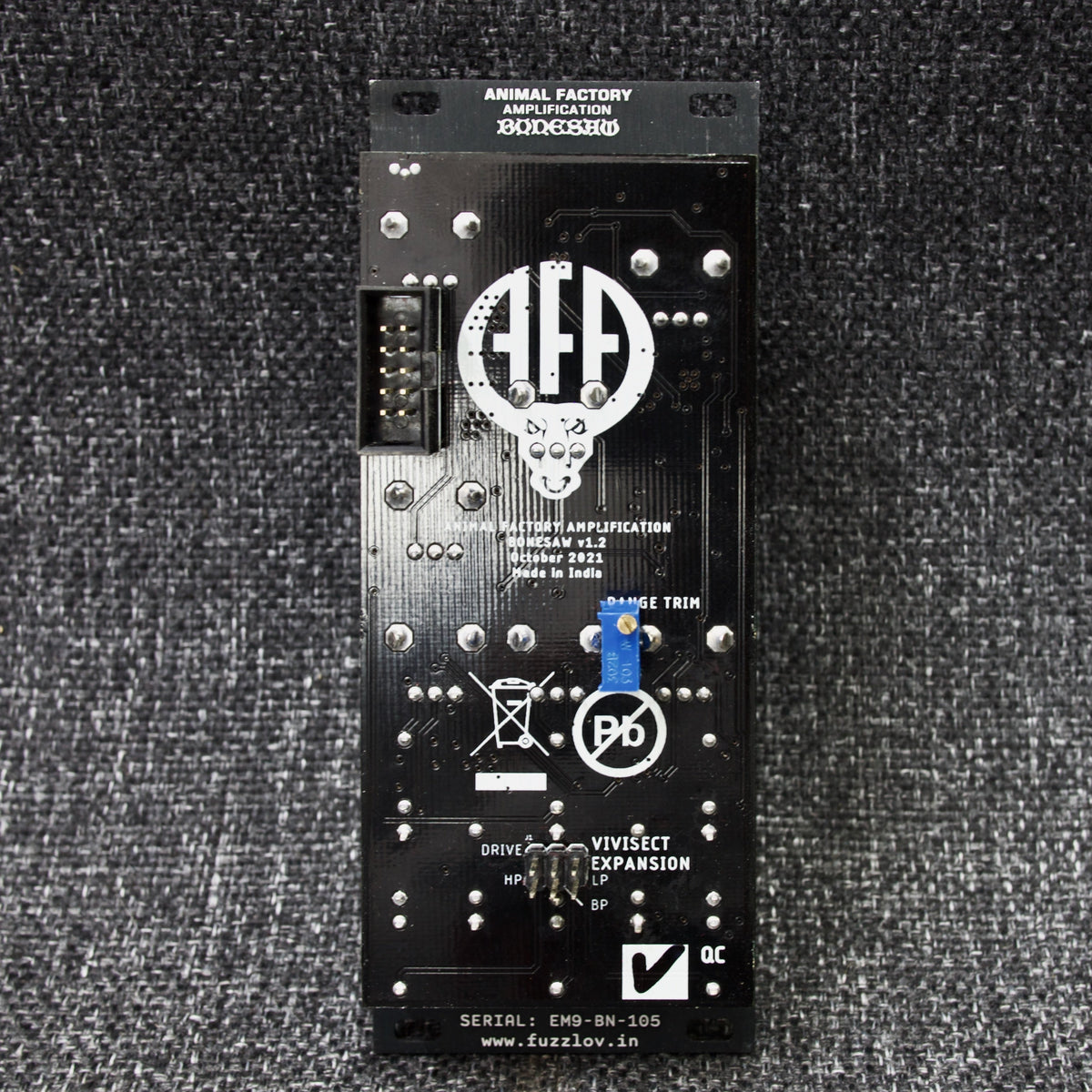

  • Animal Factory Bonesaw Eurorack State-Variable Filter Module - View 4
1 4
AnalogAnimal Factory AmplificationBoutiqueDesirableEurorackFilterHARDWAREModule
• Available for Pre-order

Animal Factory Bonesaw Eurorack State-Variable Filter Module

Animal Factory Bonesaw Eurorack State-Variable Filter Module

£169.00 GBP
£169.00 GBP
Sale Sold out
  • Loyalty Reward Earn £3.38 in Loot Credits with this purchase.
  • UK shipping Price includes UK VAT. No hidden customs charges.
  • Loot Synergy 2% of your total order back in Loot Credits for use at lootaudio.com.
  • Authorized Retailer Official UK partner. Full manufacturer warranty.

Animal Factory Bonesaw is a characterful, aggressive 6dB state-variable filter (SVF) module engineered to cut through audio signals with surgical, uninhibited grit. Offering simultaneous individual Lowpass, Bandpass, and Highpass outputs alongside an integrated input drive circuit, Bonesaw transforms clean oscillator signals into screaming, resonant textures.

Unlike clinical filters, Bonesaw features an integrated pre-filter drive stage that fattens incoming signals before hitting the core. Furthermore, an FM Feedback circuit with phase control allows you to route the bandpass output back into the frequency modulation input, dialling in rasping edge, complex overtones, or downright feral squeals.

When pushed into maximum resonance, Bonesaw cleanly self-oscillates as a pure sine wave oscillator. Using the included rear expansion cable, Bonesaw connects directly to the Animal Factory Vivisect mixer module to form an ultra-flexible 3-band pole-mixing EQ filter system.

Scope of delivery: Animal Factory Bonesaw module, Eurorack power ribbon cable, Vivisect rear expansion link cable, M3 screws.

FAQs

Q: Can Bonesaw be used as an oscillator?
A: Yes! When resonance is cranked, Bonesaw enters smooth self-oscillation. Modulating the Cutoff with V/Oct or an LFO turns it into an expressive analog sine/complex FM voice.

Q: How does the Vivisect expansion link work?
A: Bonesaw includes a rear ribbon cable that connects to the Vivisect attenuverting mixer. This automatically routes the LP, BP, and HP outputs into Vivisect's channels for custom pole-mixing and multi-band frequency sculpting.

Specifications

- Width: 10 HP
- Depth: 25 mm (Skiff friendly)
- Current Draw: +12V: 30 mA, -12V: 25 mA, 5V: 0 mA
- Audio I/O: Audio In, Lowpass Out, Bandpass Out, Highpass Out (3.5mm mono)
- CV I/O: Cutoff Frequency CV, Resonance CV, FM CV with attenuverter
- Build: Black anodised aluminium faceplate, high-grade potentiometers

Features

- 6dB/octave State-Variable Filter (SVF) with dedicated simultaneous Lowpass, Bandpass, and Highpass outputs
- Pre-filter analog drive circuit to push audio into rich harmonic saturation before filtering
- FM Feedback path with dedicated phase switch for rasping, gritty frequency modulation
- Clean self-oscillation at high resonance settings, turning the module into a playable sine/FM oscillator
- Rear expansion header directly interfaces with the Animal Factory Vivisect module for 3-band EQ mixing
