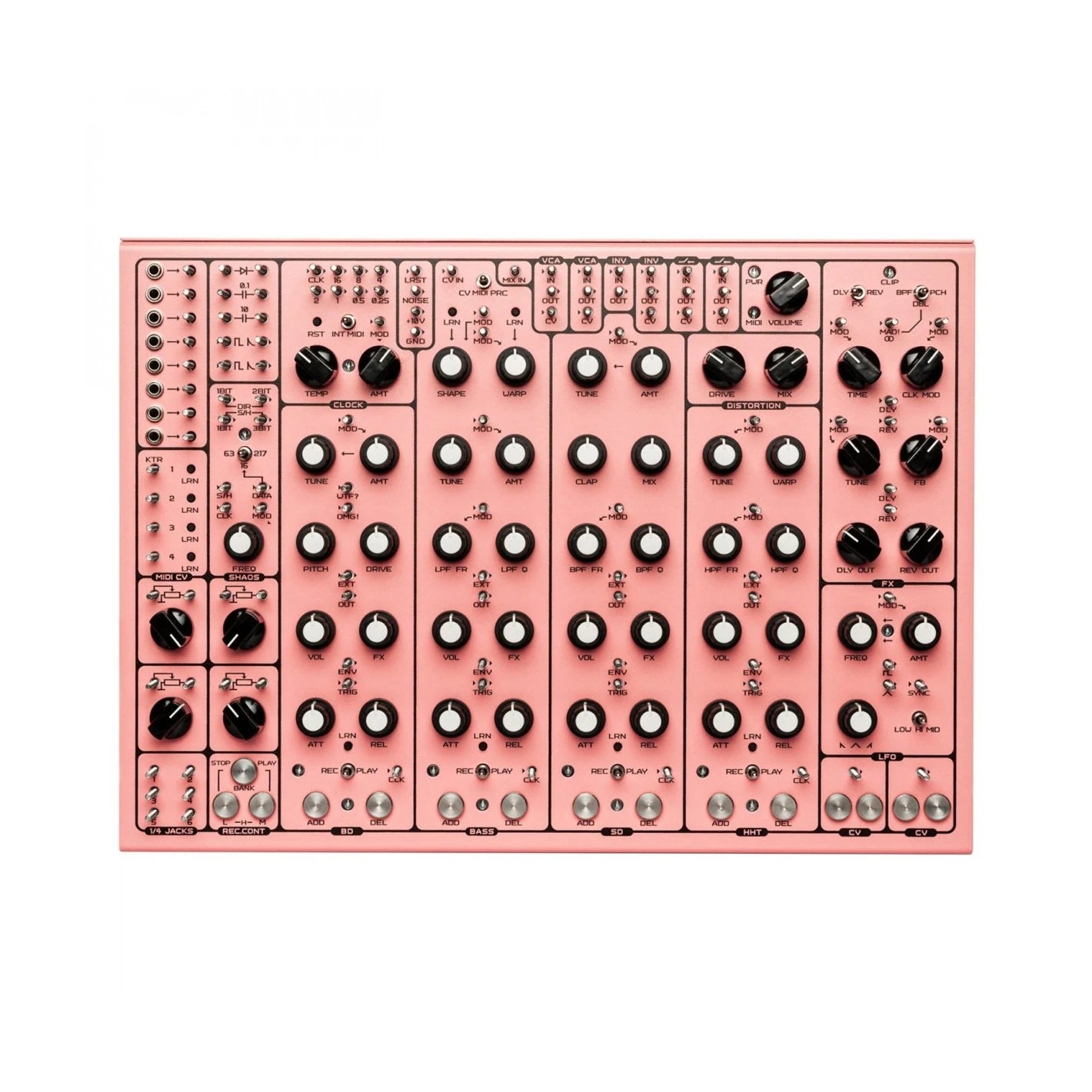

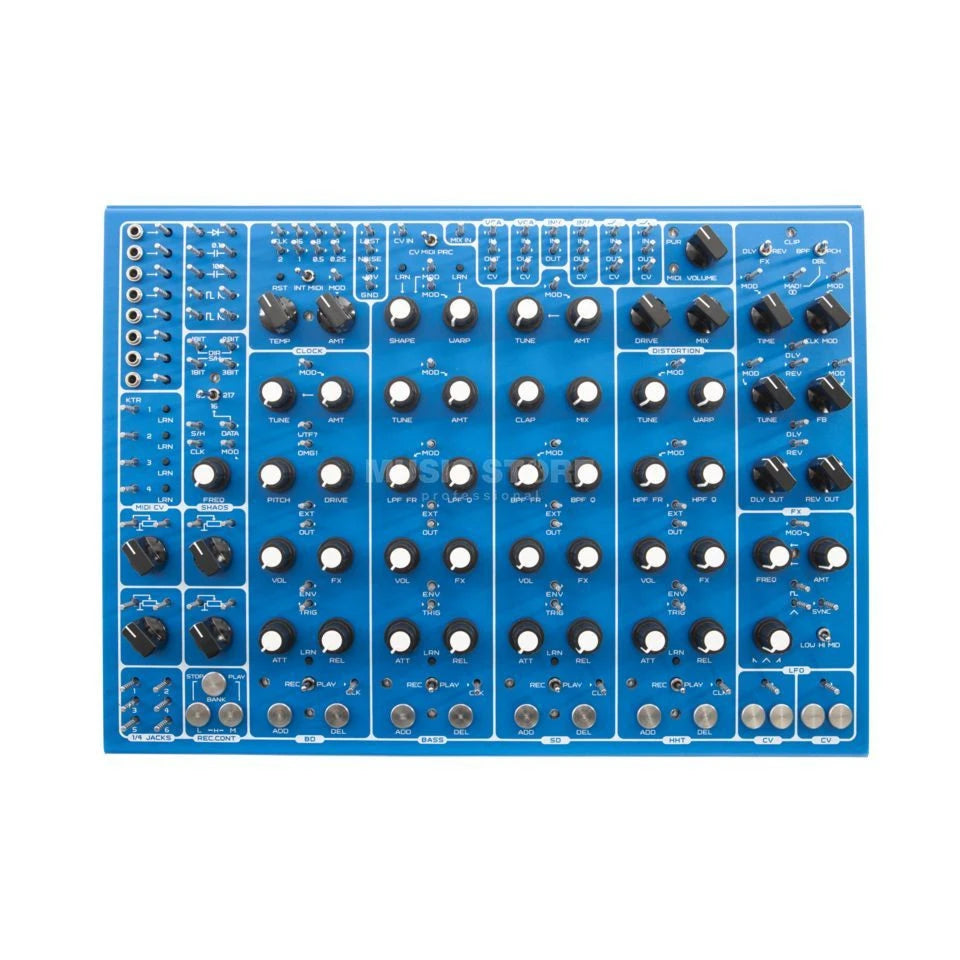

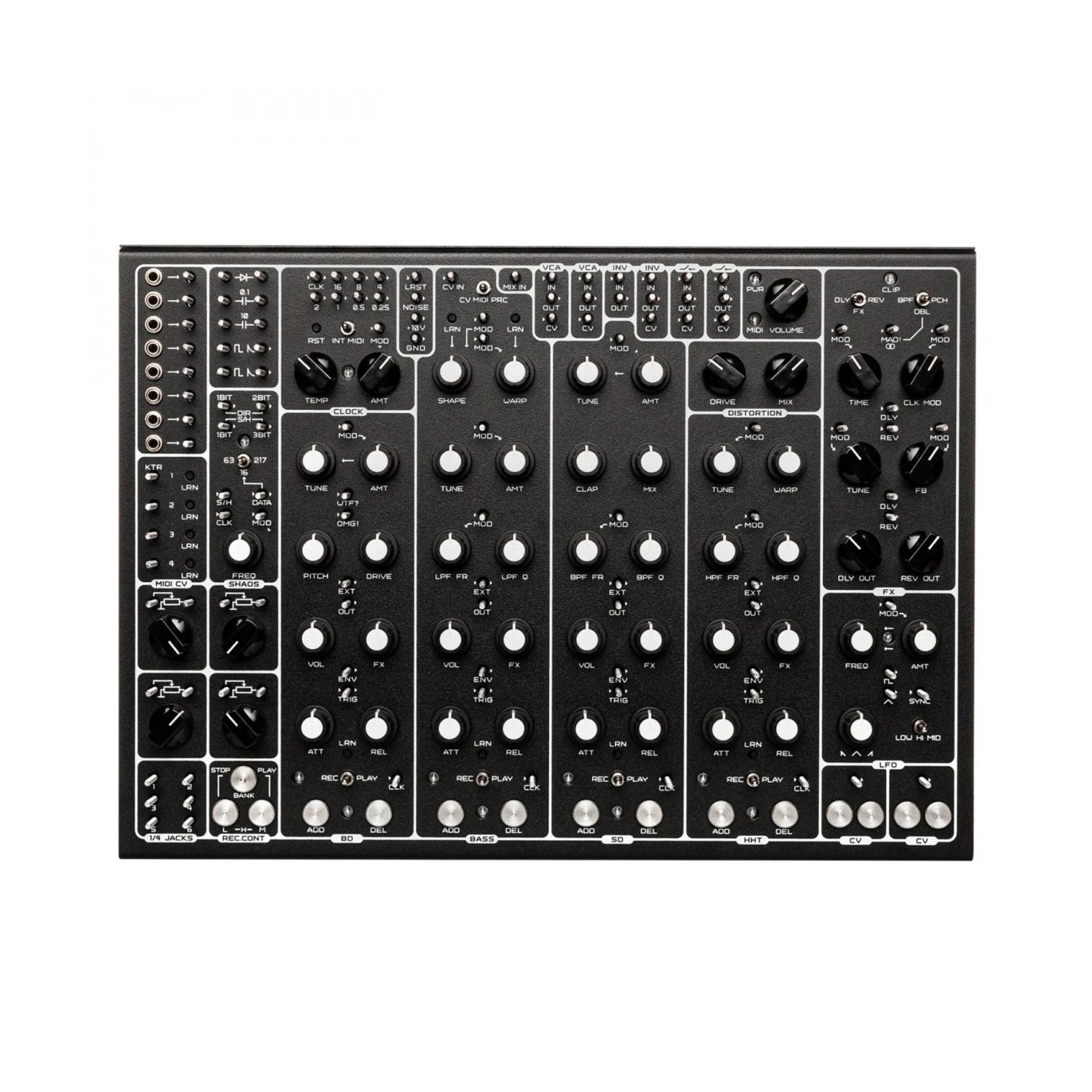

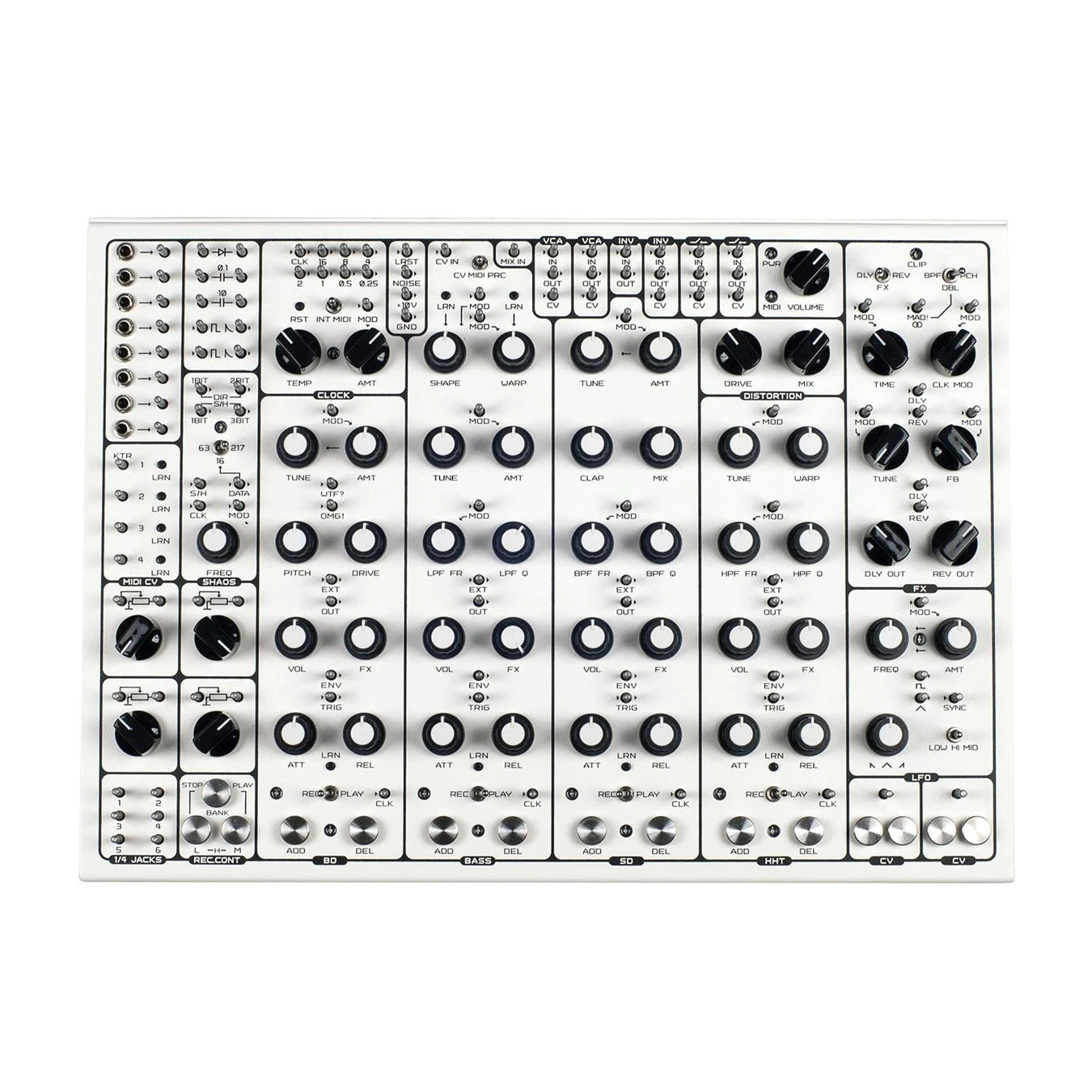

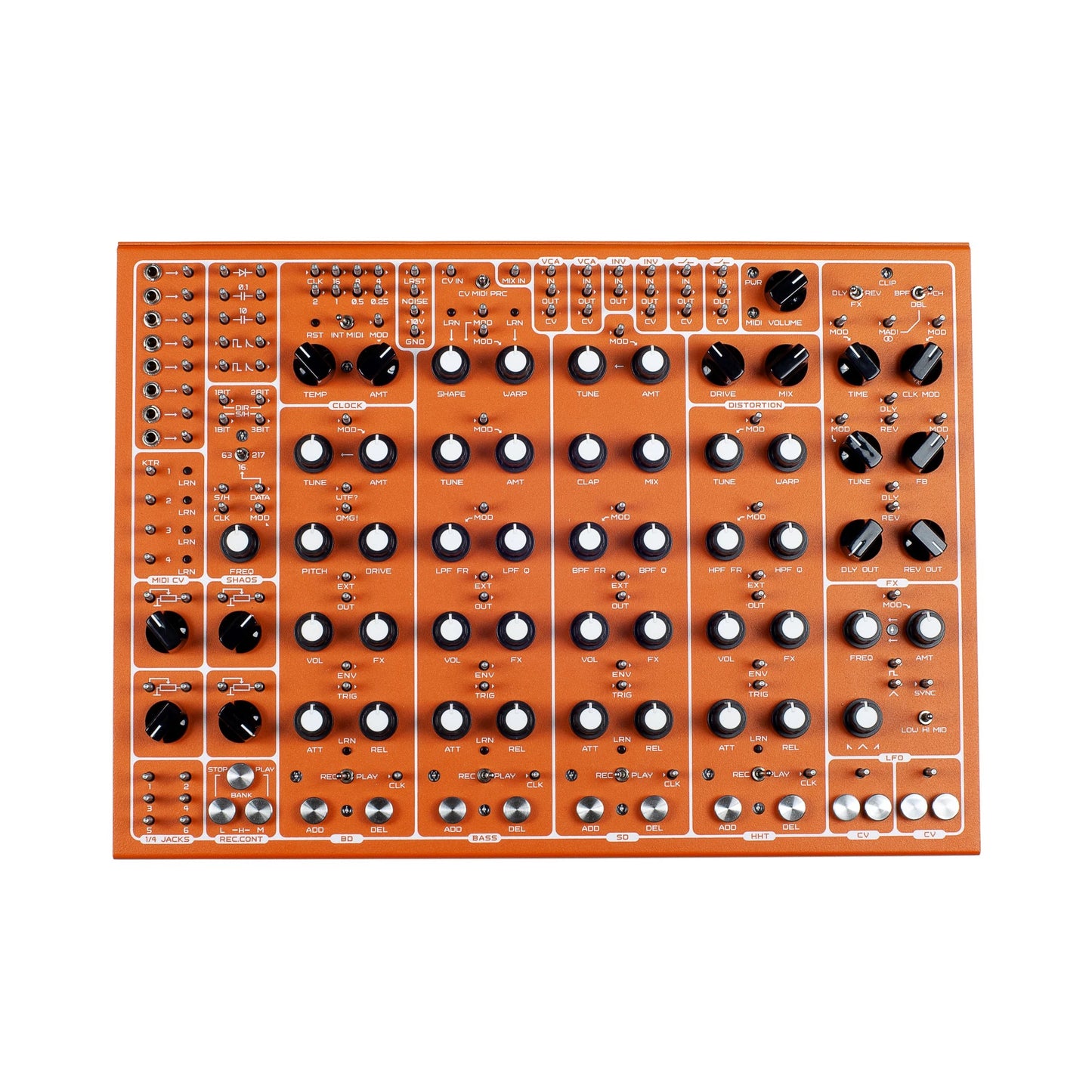

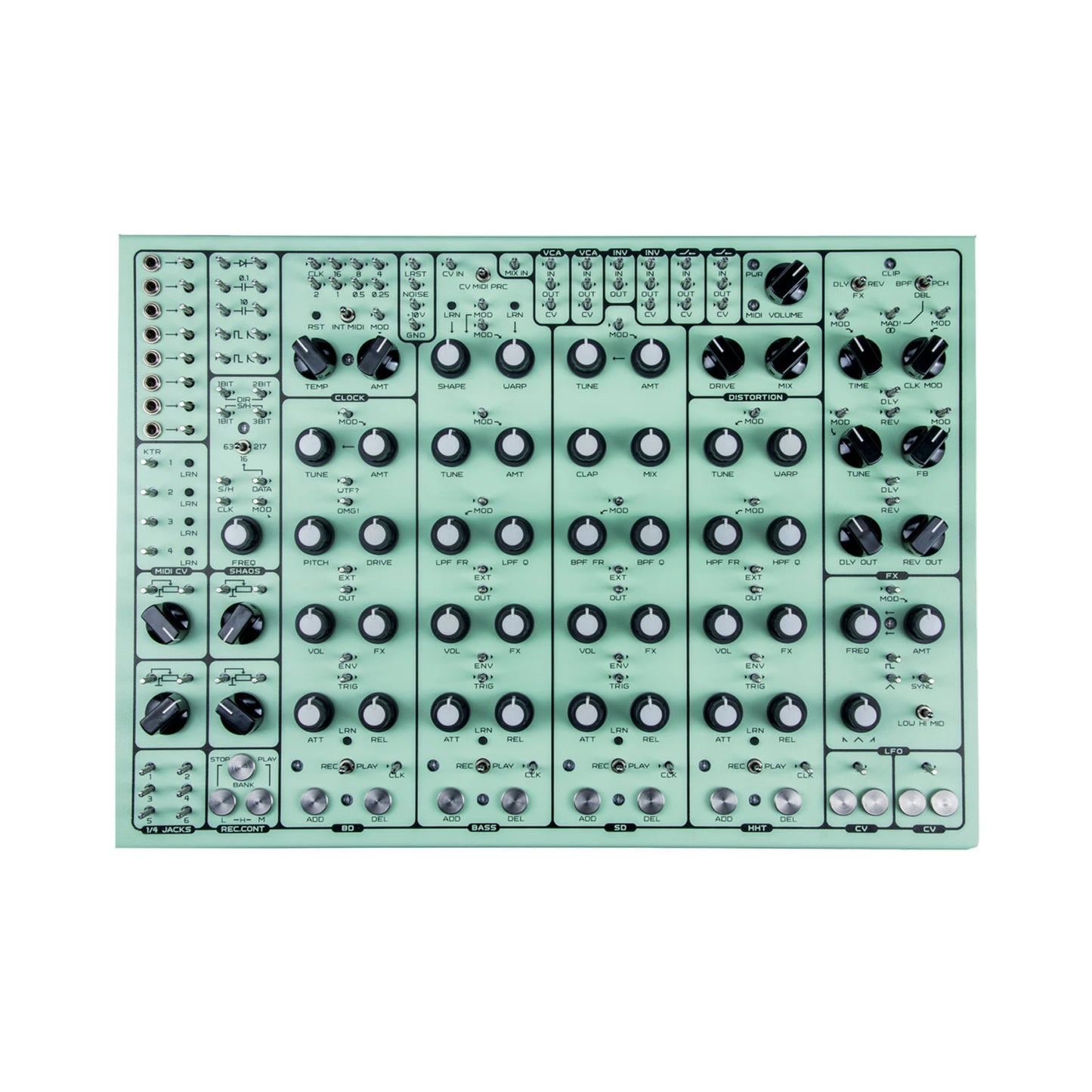

SOMA Laboratory Pulsar-23 Organismic Analog Drum Machine

Q: Why does the Pulsar-23 use alligator clips and metal posts instead of standard 3U Eurorack mini-jacks?

A: SOMA utilizes a turret-and-clip architecture to unlock three distinct layout performance advantages. First, it drastically saves vertical panel space, allowing for over 100 deep patch points in a tight footprint. Second, it allows you to clip multiple stacked cables onto a single metal terminal simultaneously without needing multi-modules or splitter hubs. Finally, because the internal voltage lines never exceed a completely safe 12V threshold, you can touch two pins simultaneously with your bare fingers to use your body's natural electrical resistance to modulate signals live on stage.

Q: Do the loop recorders capture the actual audio sounds of the drum voices?

A: No, the 4 internal loop recorders are event sequencers, not audio samplers. They record the exact high-resolution physical timing arrays of when you strike the performance pads. This means you can record a rhythmic loop, and then completely adjust the tuning, envelope decay, or filter parameters of the analog voices afterward while your pattern plays back flawlessly without altering the recorded trigger events.

Q: How do I link the Pulsar-23 with my wider Eurorack modular gear setup?

A: While the core interior patching relies on the alligator clip layout, SOMA builds an integrated conversion matrix directly into the top edge of the interface panel. The chassis features eight dedicated 3.5mm mini-jack ports that translate standard Eurorack control voltages cleanly onto corresponding metal alligator posts. This makes it incredibly easy to route clock triggers, hardware LFOs, and external envelopes out of your modular skiff directly into the Pulsar’s analog modules.

Product Format: Standalone Semi-Modular Organismic Analog Drum Machine & Synthesizer

Sound Generation Engine: 4 x Dedicated Analog Voice Channels (Bass Drum, Bass/Percussion, Snare Drum, Cymbal/Hi-Hat)

Patch System Interface: 100+ Exposed metal binding turrets utilizing bidirectional Alligator Clip connection cables

Composition Sequencer: 4 x Independent Event Loop Recorders (Records trigger timing behavior data, not raw audio tracks)

Rhythmic Brain: Master Clock Generator backed by an extensive array of integer Frequency Dividers

Modulation Modules: 1 x Variable Waveform LFO (Ultra-wide operational span from 0.1Hz up to 5000Hz)

Randomness Engine: Onboard "Shaos" pseudo-random generator driven by shift registers with 4 discrete outputs and Sample-and-Hold functionality

Integrated DSP FX: Low-latency digital Delay and Hall Reverb engines with independent CV control over the global sample clock rate

Analog Distortion Circuit: Built-in hard-clipping distortion overdrive path to glue the master summing mix

Utility Sub-Matrix: 2 x CV-controlled analog Gates, 2 x VCAs, 2 x Controllable Signal Inverters

Studio I/O Ports: 5-Pin DIN MIDI Input, 7 x 6.35mm (1/4") Balanced Line Outputs, 8 x 3.5mm mini-jack CV interconnect conversion ports, 3.5mm Headphone Output

Voltage Threshold Range: Clean 0 to 10V Input and Output tracking standard

Physical Chassis Parameters: Rugged all-metal industrial casing measuring 380 mm x 280 mm x 80 mm

Included Kit Accessories: 1 x High-Quality Handmade Transport Bag, 30 x Multi-Color Alligator Clip cables, 12V Center-Positive External PSU
