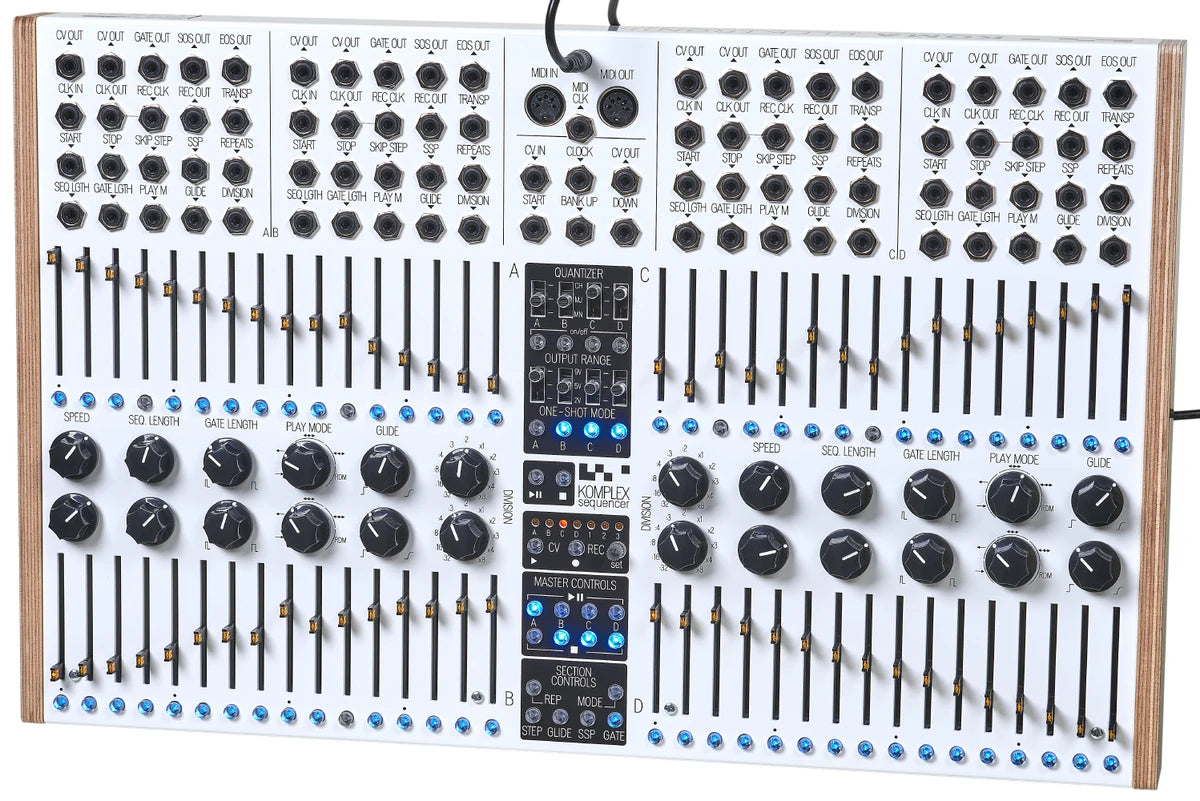

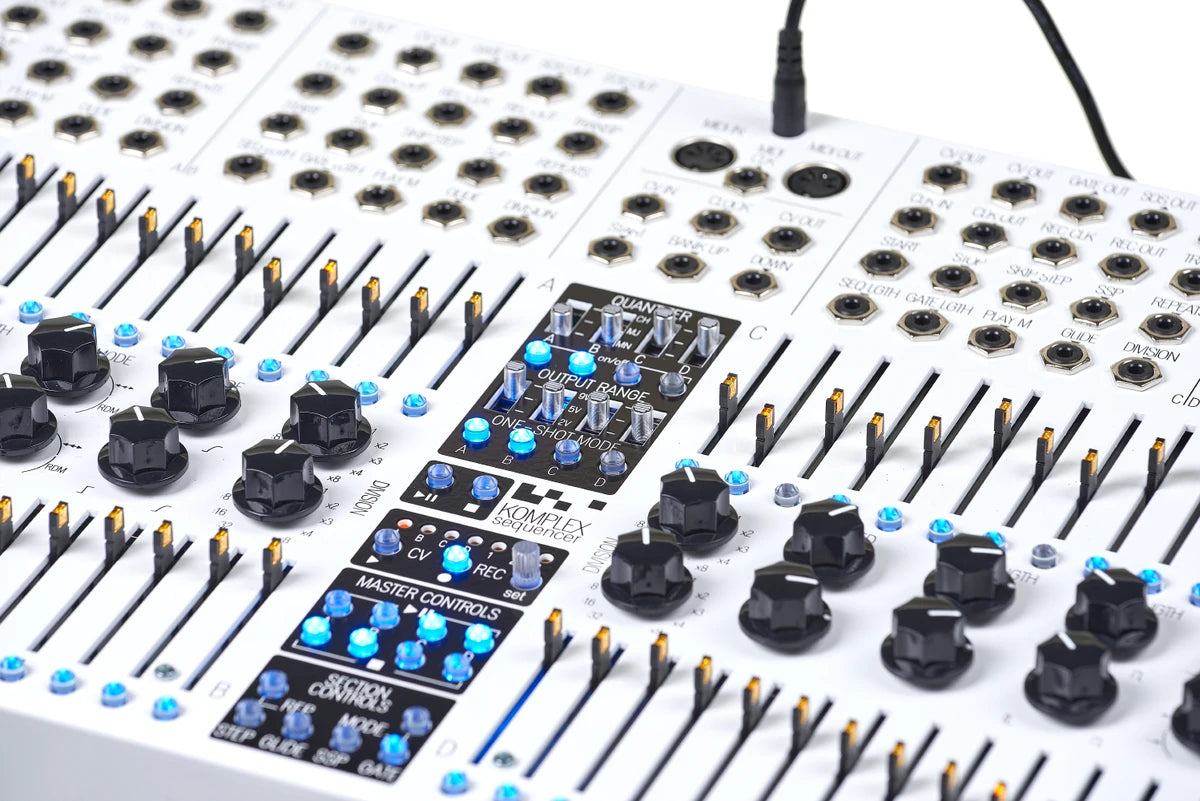

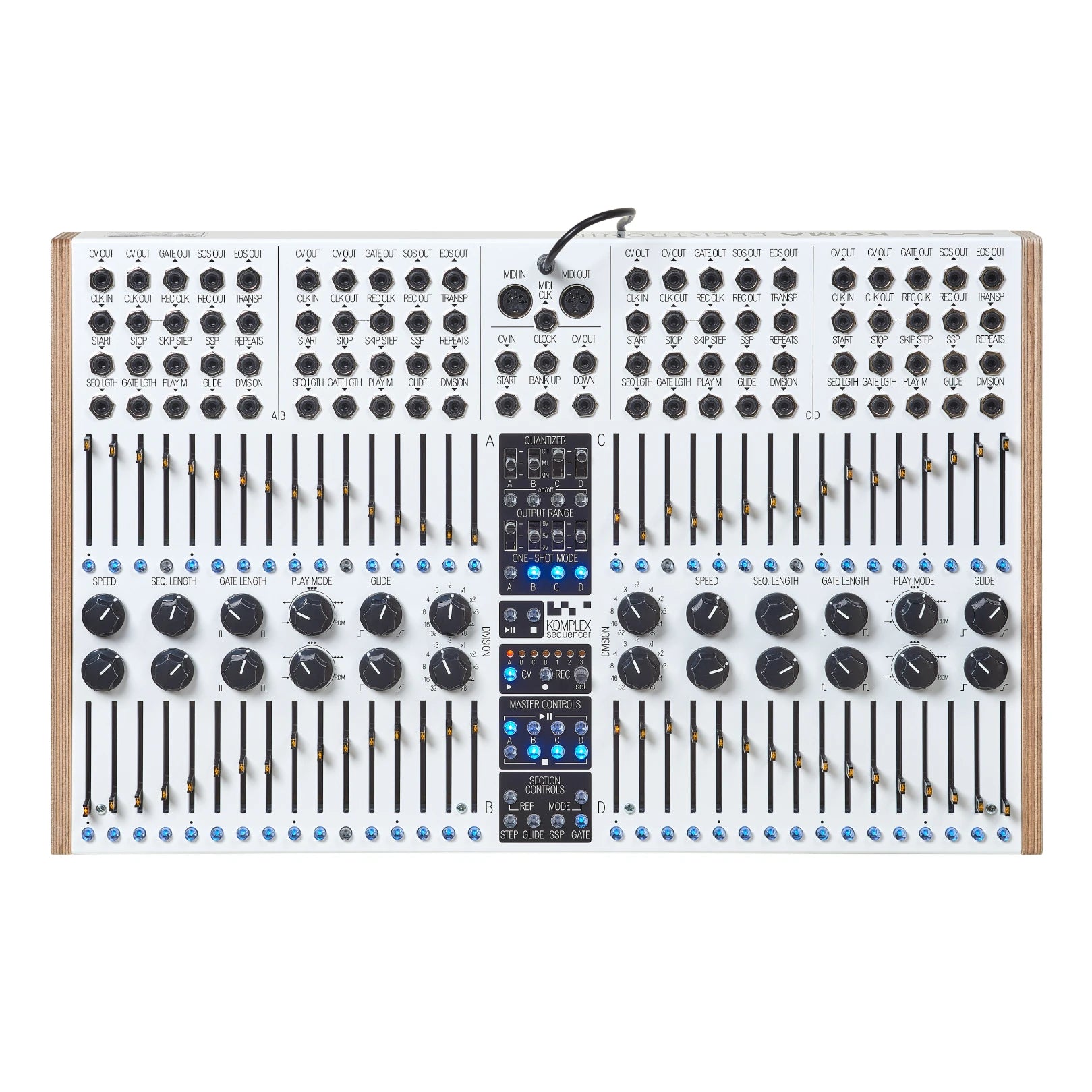

KOMA Elektronik Komplex Sequencer

CV Inputs

Clock, Rec Clock, Transpose, Start, Stop, Skip Step, Sequence Start Point, Repeats, Seq Length, Gate Length, Play Mode, Glide, Division, CV Recorder (CV In, Clock, Start, Bank Up/Down)

CV Outputs

CV Out, Gate Out, Start Of Sequence, End Of Sequence, Clock, CV Recorder CV Out (A, B, C, D and CV)

Sequencer Controls

64 Sliders and Step Select Buttons, Speed, Sequence Length, Gate Length, Play Mode, Glide, Division, Quantizer and Scale, Output Range, One-Shot Mode, Play/Pause and Stop, Global Play/Pause and Global Stop

Section Controls

Repeat, Skip Step, Glide, Sequence Start Point, Gate, Mode Menu

MIDI

MIDI Sync In, MIDI Out, MIDI Clock Out (1 trigger per quarter note)

CV Recorder

Banks A, B, C and D available at corresponding sequencer patch bay outputs. All 7 banks selectable at CV Recorder CV Out by the Select control or Bank Up/Down inputs. CV is recorded and clocked through the CV Recorder CV and Clock inputs or Sequencer Rec Clock inputs.

Extra Features

Mode Menu (Deep Settings) and Firmware Updates

Casing:

Powder coated aluminum casing, silk screened printing and wooden side panels.

Dimensions

46.2 cm x 29 cm x 4 cm (L x W x H)
18.2" x 11.4" x 1.6" (L x W x H)

Net Weight

3.2 kg / 8.8 lb

Shipping Weight:

4.5 kg. / 9.9 lbs including power adapter and instruction manual.

Power Requirements:

9VDC power adapter. Only use the KOMA adapter shipped with the unit.

Accessories

Included: dust cover, manual and power supply unit.
Rackmount kit available separately
