Frap Tools Brenso Complex Oscillator

Blip Expert Take

Brenso represents the absolute gold standard of modern analog West Coast sound generation. It features an incredibly advanced complex dual-oscillator voice framework that cross-modulates, waveshapes, and folds waveforms with beautiful harmonic purity and no digital artifacts.

Dual Complex Oscillator Design
The Frap Tools Brenso features two analog 'thru-zero' triangle-core oscillators, enabling users to explore and create complex FM timbres and wavefolding, enhancing simple tones into intricate sounds.

Advanced Modulation Capabilities
Equipped with true thru-zero FM, linear frequency modulation, and extensive CV connectivity, Brenso allows for unprecedented control over sound modulation, offering a playground for audio experimentation.

Intuitive User Interface
Despite its deep sound design capabilities, Brenso maintains an easy-to-use interface with color coding that helps users quickly understand signal flow and modulation, reducing learning time and frustration.

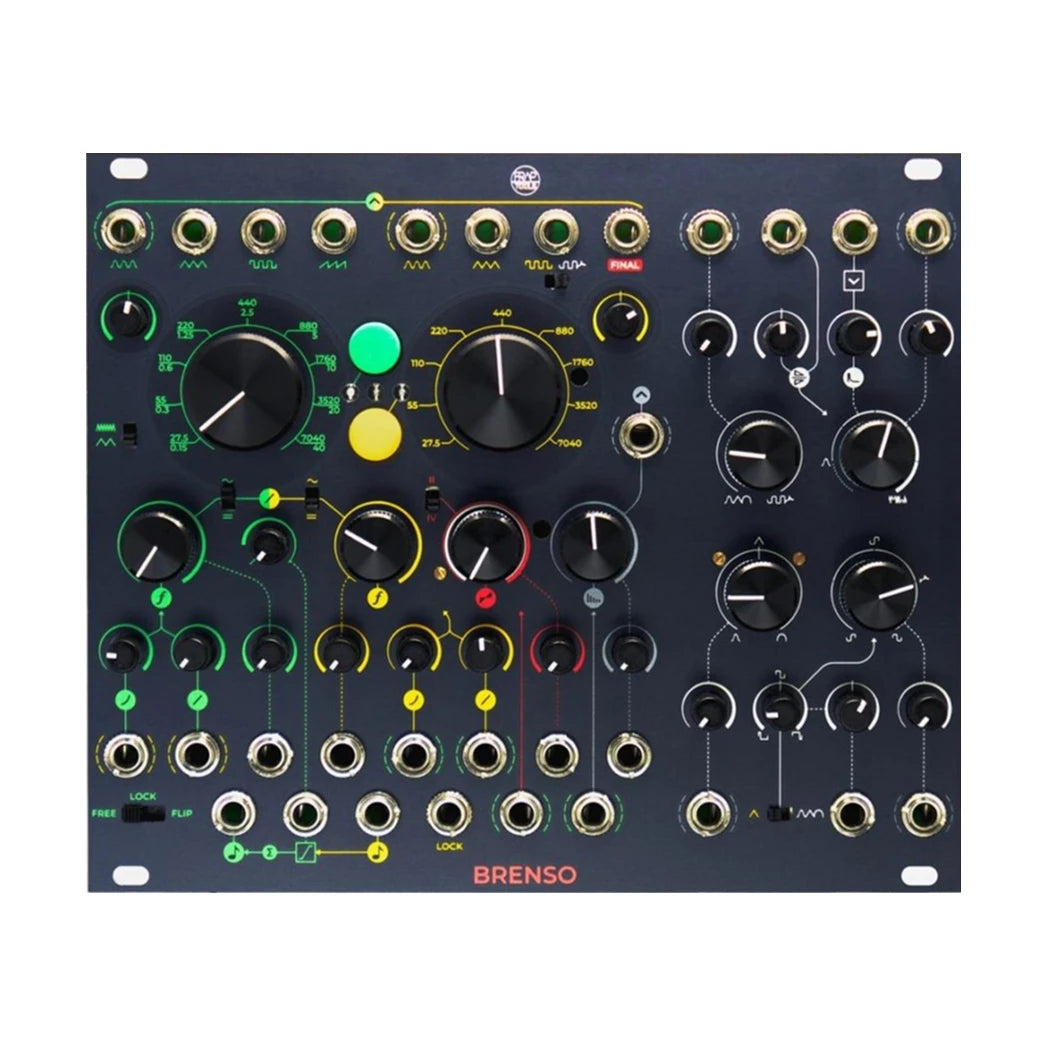

Reimagine the structural blueprint of West Coast synthesis. Handcrafted with uncompromising premium build quality in Italy, the Frap Tools Brenso is a magnificent 30 HP analog dual complex oscillator module designed to act as the primary, high-character sound source of an expressive Eurorack system. Moving away from rigid, pre-configured routing defaults found on legacy dual oscillators, Brenso approaches synthesis as a tapestry of "entangled" waveforms. It presents a beautifully tactile panel divided into color-coded sections that invite musicians to weave intricate, audio-rate modulation paths with absolute clarity.

The core architecture consists of two analog thru-zero triangle-core oscillators (color-coded Green and Yellow) that deliver pristine tracking and complex frequency modulation (FM) characteristics. Both voice cores feature independent controls for coarse and fine tuning, alongside dedicated mixable inputs for linear and exponential thru-zero FM. To make live stage performances completely stress-free, Frap Tools integrated an ingenious Coarse Frequency Lock button for each oscillator. Once pressed, the large Coarse dial becomes instantly inactive, protecting your patch from accidental knocks while keeping the fine-tuning knob free for micro-tonal adjustments. The Green oscillator features deep utility versatility, dropping cleanly into sub-audio rates to function as a highly complex, variable-waveform LFO to drive your modulation matrix.

Audio streams are sculpted in the White and Red processing layers. The Timbre engine hosts two parallel waveshapers, a dedicated pulse-width modulation (PWM) circuit, and a state-of-the-art wavefolder with symmetry control. Crucially, the wavefolder can be "pinged" using an external gate or trigger input, opening the circuit instantly before decaying with an organic, non-linear slope to forge acoustic, woody percussive sounds. The signal terminates in a four-quadrant multiplier section capable of morphing between clean Amplitude Modulation (AM) and cross-modulating Balanced/Ring Modulation (RM) paths via a precise on-board crossfader. Adhering to Frap Tools' legendary label-free geometric design language, Brenso encourages muscle memory and deep instrumental intuition, establishing itself as an absolute masterpiece of modern modular synthesis.

Who Is This For?

Boutique sound designers looking for an uncompromising, deeply interactive analog voice to serve as the harmonic crown jewel of their system.
