Morphor Echon 6 | 6 Voice Analogue Polyphonic BBD Synthesizer

Q: Is the audio path entirely analogue?
A: Yes. The ECHON 6 features a 100% full analogue audio signal path utilizing a positive feedback system to produce highly responsive, organic, and evolving soundscapes.

Q: Does the ECHON 6 feature preset screens or menus?
A: No. The ECHON 6 is a completely menu-free, display-free tactile instrument. It is built intentionally to keep musicians and producers in full creative flow, inviting pure hands-on performance, knob-per-function patching, and uninterrupted sonic exploration.

Q: What are the multi-timbral and modulation capabilities?
A: The instrument is a 6-part multi-timbral engine, meaning you can control individual voices or split layers with distinct patches. It features an incredibly flexible 9×32 modulation matrix alongside fine feedback controls, direct stereo spread/panning control per voice, and adjustable dry/wet mixing to blend the raw exciter with the resonator signal.

Q: What kind of sounds is the ECHON 6 best suited for?
A: Thanks to the nature of BBD string/pipe simulation and physical feedback modeling, it excels at metallic textures, string-like string plucks, organic physical strikes, evolving industrial pads, and unpredictable, experimental sci-fi underscores, while maintaining classic polyphonic playability.

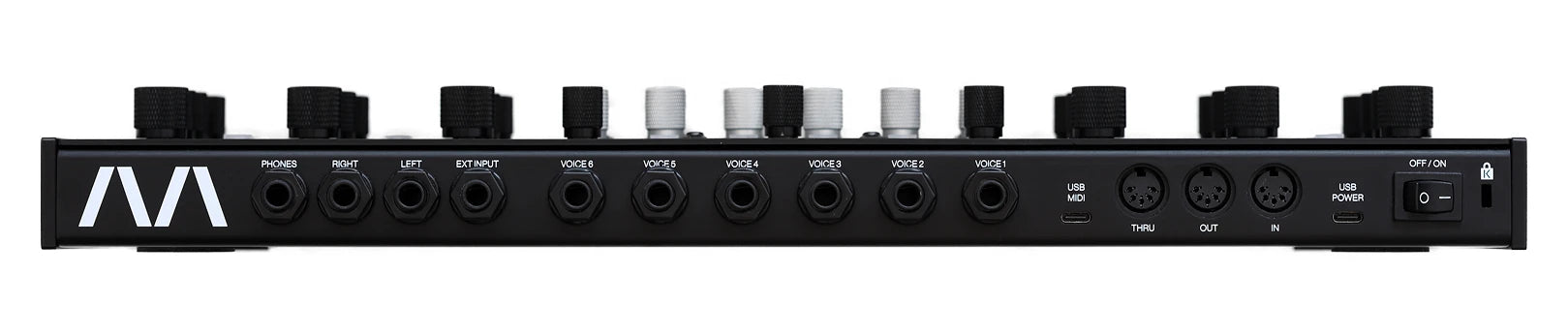

• Main outputs (L/R):  1/4″ jack balanced (+4 dBu)
• Direct voice outputs (stereo):  1/4″ jack (+4 dBu)
• Audio input (mono):  1/4″ jack (+4 dBu)
• Headphones output (stereo):  1/4″ jack (independent level, pre-master monitoring)
• Power input:  Dedicated USB-C (9 V ⎓ 3 A)
• Power consumption:  15 W
• Tabletop dimensions:  53 × 450 × 185 mm
• 19″ Rack dimensions:  4 U (+1 U for cables) (rack ears included)
• Weight:  2.3 kg
• MIDI manufacturer ID:  00h 22h 17h (SysEx ID)

• Feedback system with full analogue audio path
• 6-part multi-timbral architecture
• 6× Full analogue BBD resonators
• 6× True analogue VCO exciters
• 6× Quad LFO + Random generators per voice (24 in total)
• Custom voice grouping (up to 6 groups)
• Comprehensive unison control
• Extensive modulation matrix (9 sources × 32 destination parameters)
• Global modulation attenuverters
• 216 user presets (6 × 6 × 6 structure)
• 1× 1/4″ jack external input (mono)
• 2× 1/4″ jack balanced main outputs (L/R)
• 6× 1/4″ jack voice outputs (stereo)
• 1× 1/4″ jack headphone output (stereo) (independent level, pre-master monitoring)
• MIDI DIN In/Out/Thru ports
• MIDI USB-C (class-compliant device, no bus power)
• MIDI fully-remote controllable
• MIDI SysEx support
• Firmware update via USB-C
• 19″ rack-mountable (black aluminum rack ears included)
• VESA-mount compatible
• Kensington security slot

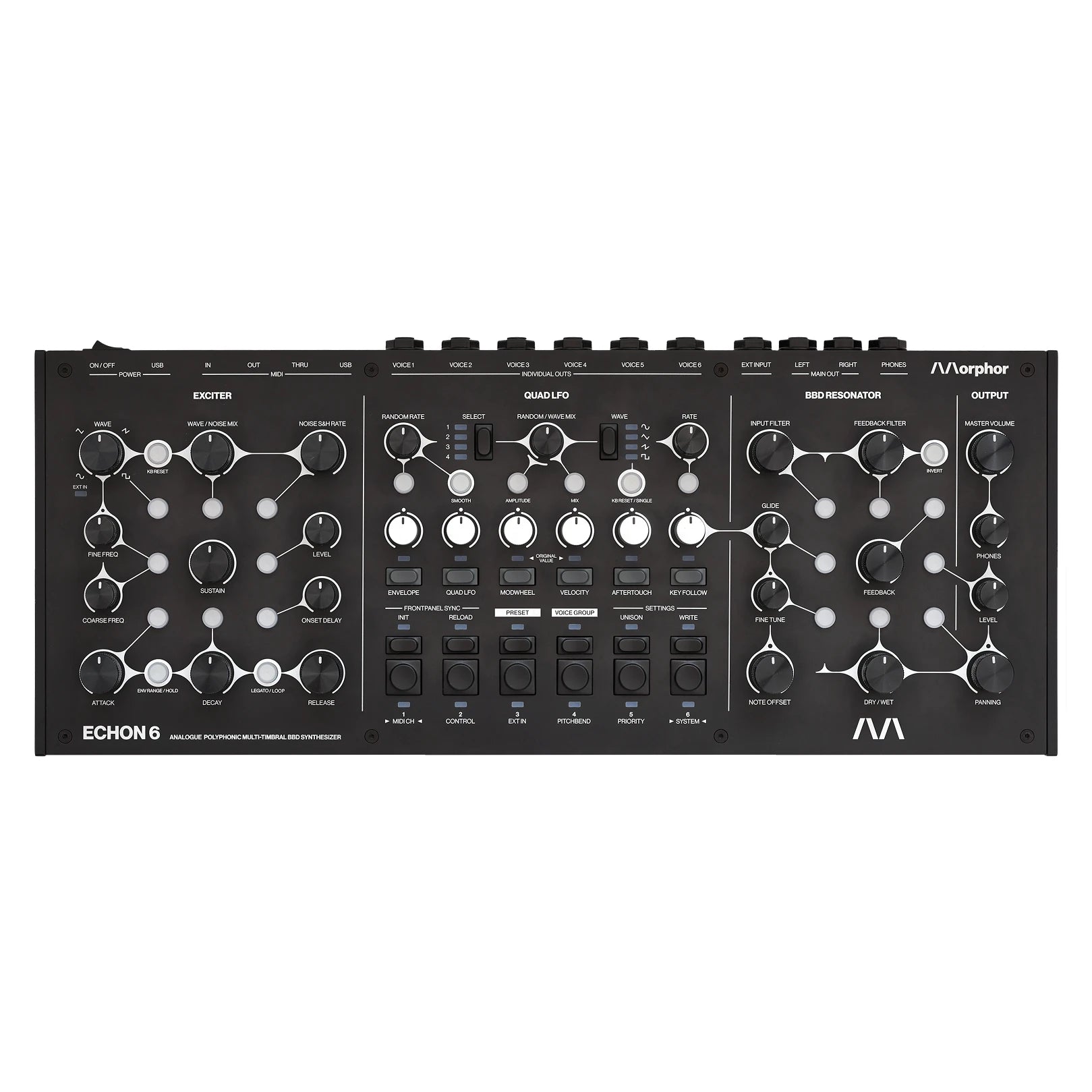

• No display — 100% tactile operation
