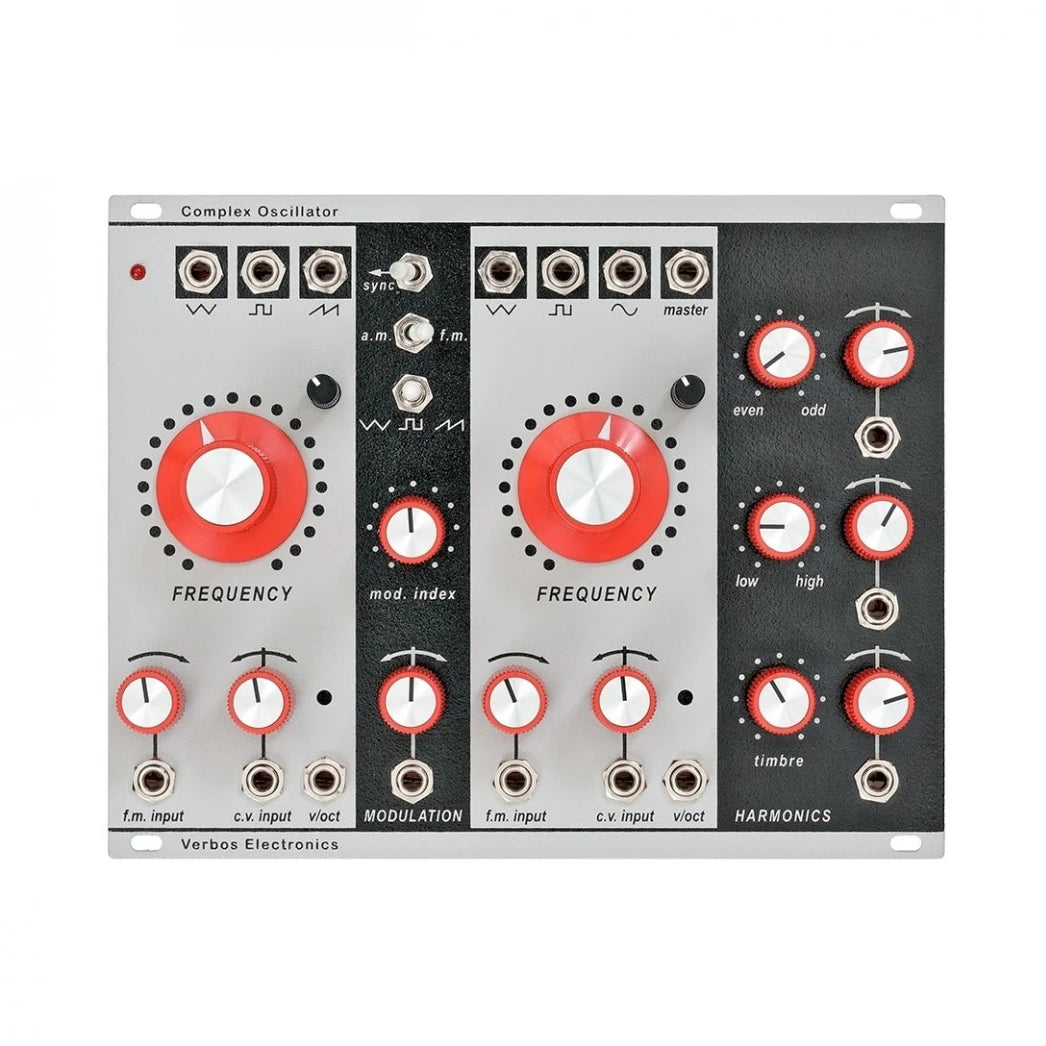

Verbos Electronics Complex Oscillator

Q: What is the main structural difference between the "Sine" output and the "Master" output?
A: The Sine jack on the carrier oscillator outputs a clean, fundamental, unshaped analog sine wave straight from the triangle core. The Master output, however, takes that exact same sine wave and routes it through Verbos' complex multi-stage analog wavefolding and harmonics circuitry. The Master jack is where your Timbre, Symmetry, and Order parameter changes actively mutate the signal.

Q: Does the internal Frequency Modulation bus use linear or exponential curves?
A: The internal, hardwired modulation bus utilizes unipolar exponential frequency modulation. This choice was made because exponential FM excels at low-frequency modulations, such as tracking musical vibratos or building organic tremolos across multiple octaves without dropping pitch scaling. However, if your patch requires linear FM, Verbos includes separate f.m. input jacks on both oscillators, allowing you to feed external bipolar modulators through dedicated attenuators for clean, bright, and perfectly symmetrical audio-rate FM tracking.

Q: What exactly does the "Soft-Sync" toggle switch accomplish?
A: When flipped toward the arrow indicator, the Sync switch engages a soft-synchronization loop where the right-side Master Oscillator lightly forces the left-side Modulation Oscillator to reset its phase timing. This locks the frequency cycles of both voices together dynamically, which eliminates chaotic pitch beating and unlocks highly stable, metallic, or sideband-rich frequency modulated timbres that track perfectly over melodic lines.

Q: Will this module fit into shallow, portable skiff enclosures?
A: Yes, perfectly. Despite its complex dual-voice analog architecture, the Verbos Complex Oscillator measures a very slimline 26mm in physical module depth. This compact footprint ensures it can drop comfortably into almost any modern, shallow, or portable desktop travel skiff case on the market with zero risk of touching your power busboards.

Product Format: Premium 3U Analog Dual Complex Oscillator Eurorack Module

Module Width: 32 HP / TE

Module Depth: 26 mm (Skiff-friendly low-profile clearance)

Current Draw: 70 mA (+12 V) / 50 mA (-12 V) / 0 mA (5V)

Core Architecture: True Discrete Analog Triangle Cores (No Digital Processing)

Modulation Range (Left): 1 cycle per minute up to 500 Hz (Functions as audio source or sub-audio LFO)

Carrier Range (Right): 3 Hz up to 20 kHz

Dedicated Outputs (Left): 3 x Jacks (Triangle, Square, Sawtooth)

Dedicated Outputs (Right): 4 x Jacks (Triangle, Square, Sine, and Master Output)

Internal Routing Bus: Toggle switches for AM / FM / OFF + Soft-Sync direction control

Harmonics Processing: 3 x Voltage-Controlled Shapers (Timbre, Symmetry, Order) with up to 13x Sine folding

External CV Interface: 1V/Octave tracking inputs, Linear FM inputs, and Exponential CV inputs with high-precision reversing attenuverters

Panel Aesthetics: Signature Verbos Electronics thick matte-grey aluminum faceplate with red-and-gold traces

• 2 octaves of keyboard, play sequences and grooves on the fly or use external USB/MIDI gear for DAW integration or to control external MIDI gear
• arbitrary, up to 64 steps per pattern, 24 patterns per track, 24 projects
• dedicated mute bus unquantized/quantized to pattern length
• 4 tracks: drum track with 8 triggers and modulation and 3 melodic CV/Gate tracks – Velocity and CC is recorded from external MIDI.
• three record modes: step input with step editing, live recording and step editor
• arpeggiator, roller, patterns queue, live notes removal, slides, ties/rests, quick transpose
• works also as a power supply for your modular system (same as Shuttle Control) or can be powered by a bus board like any other module
