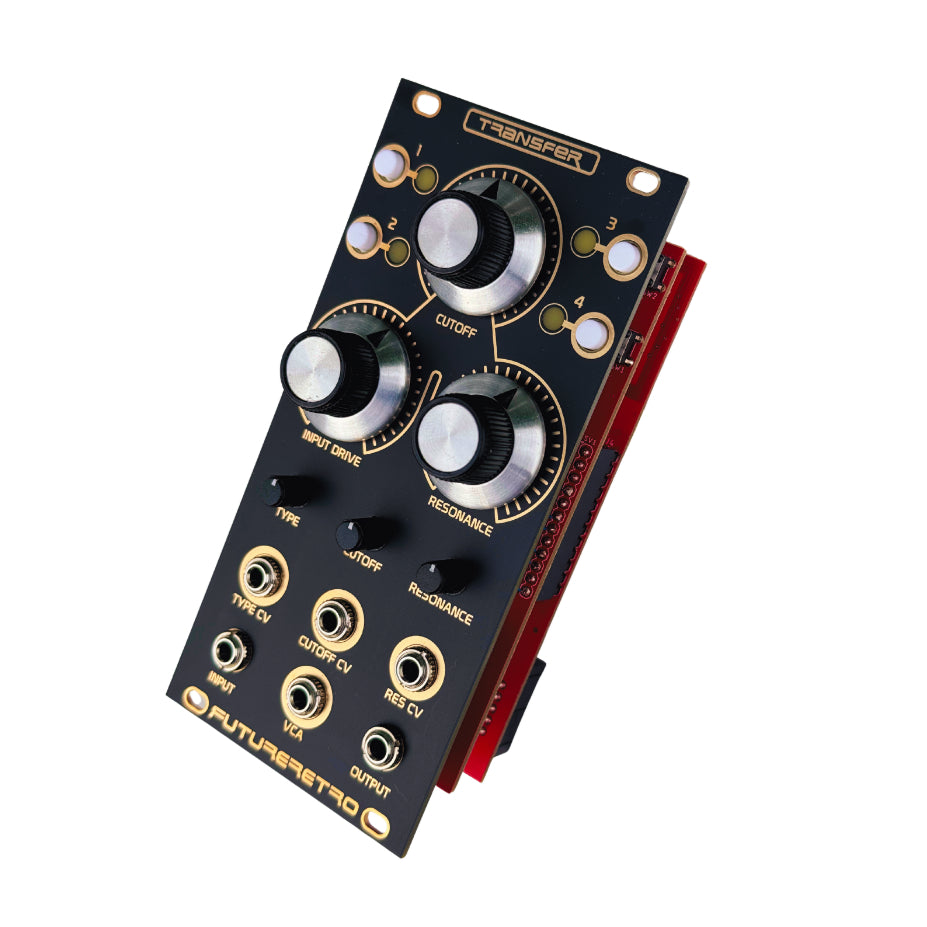

Future Retro Transfer | 16-Mode Morphing Analog Filter Eurorack Module

Q: How does the "Type Morphing" function work compared to standard filter switching?

A: On a standard multimode filter, you press a mechanical button or turn a rotary switch to jump instantly between lowpass and highpass. Transfer changes this model. By utilizing the main Type control knob or routing a modulation source into the Type CV jack, you can smoothly sweep through the internal analog filter topologies. The module will fluidly morph from a steep 24 dB lowpass curve into a sweeping bandpass, and out into highpass variations, creating incredibly complex, evolving acoustic textures that standard switches cannot produce.

Q: Why do some banks self-oscillate at low resonance while others require high settings?

A: This behavior is an intentional design trait built to honor different vintage synthesizer filtering quirks. Filters arranged in Banks 1 and 2 are engineered to be highly volatile and will enter self-oscillation very early as you turn the resonance up, behaving like liquid vintage loops or functioning as a clean sine wave sound source. Banks 3 and 4 feature atypical and EMS-inspired options that keep the core signal clean and stable across the majority of the dial, only entering self-oscillation when pushed near maximum limits.

Q: Can I use the built-in VCA independently of the filter section?

A: No, the internal VCA is hardwired directly to the output of the filter circuitry to act as an all-in-one final voice controller. When no cable is plugged into the Level CV jack, the VCA rests completely wide open, letting the filter pass audio normally. The second you patch an envelope or gate cable into the Level CV input, the VCA clamps down, routing your audio exclusively through the volume parameters mapped by your external modulation source.

• Filter Module
• 16 Filter types, e.g. low-pass 6, 12, 18 or 24 dB as well as band-pass, high-pass, band-stop, etc.
• Input overdrive
• Integrated VCA
• CV control for type, cutoff and resonance
• Bipolar attenuator for type, cutoff and resonance
• Current requirement: 80 mA (+12 V) / 60 mA (-12 V)
• Width: 12 HP
• Depth: 63 mm

• Filter Module
• 16 Filter types, e.g. low-pass 6, 12, 18 or 24 dB as well as band-pass, high-pass, band-stop, etc.
• Input overdrive
• Integrated VCA
• CV control for type, cutoff and resonance
• Bipolar attenuator for type, cutoff and resonance
• Current requirement: 80 mA (+12 V) / 60 mA (-12 V)
• Width: 12 HP
• Depth: 63 mm
