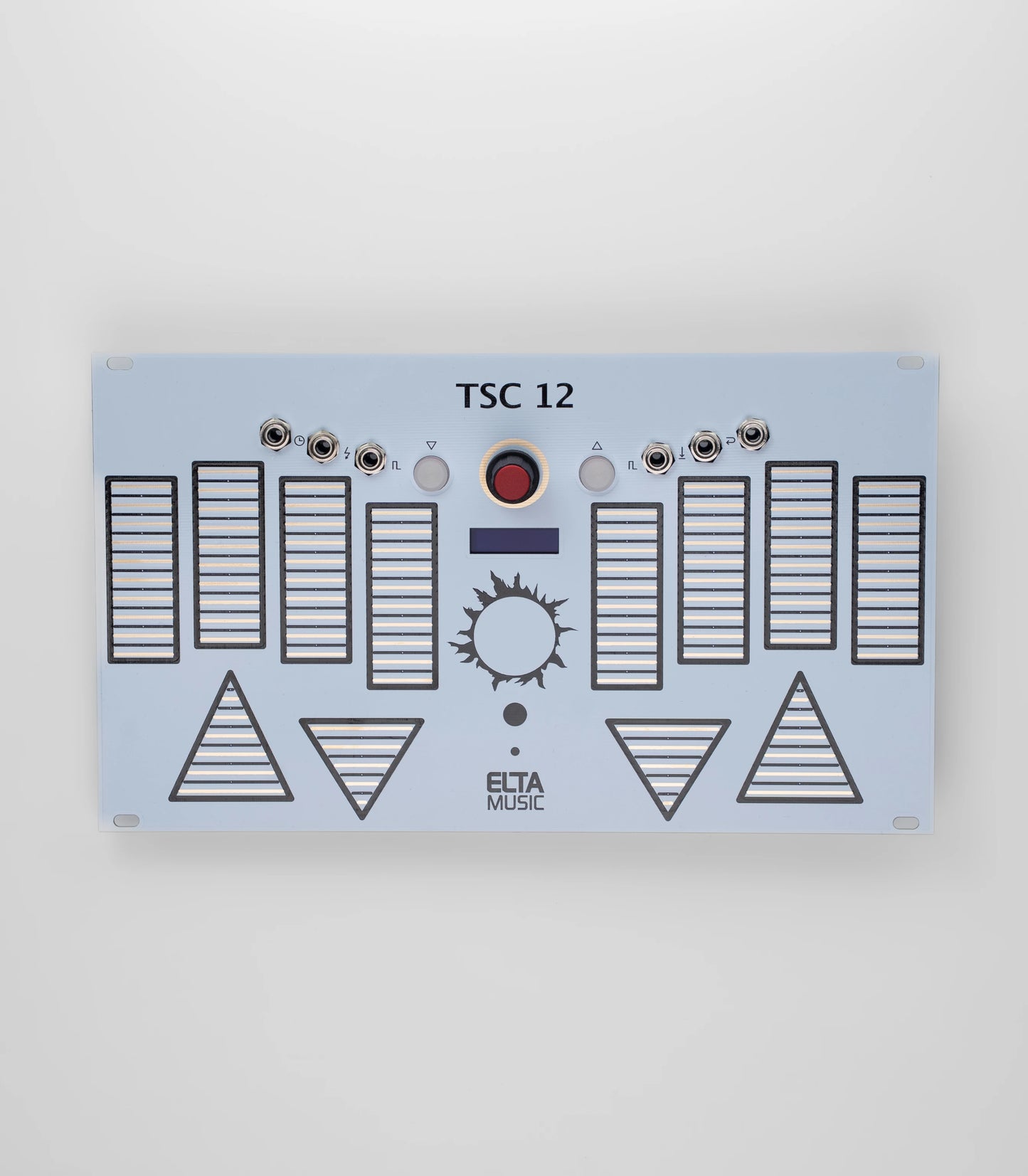

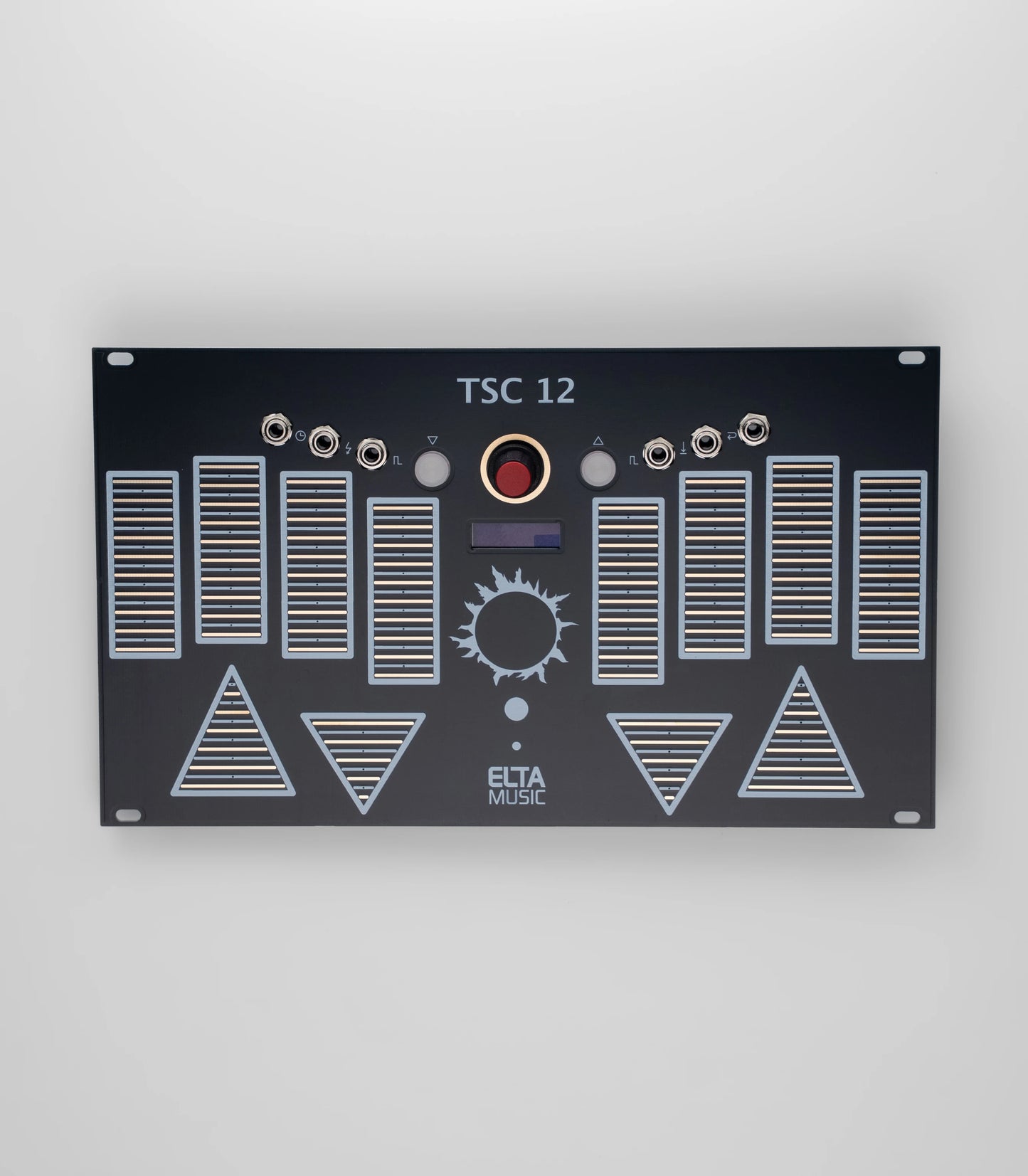

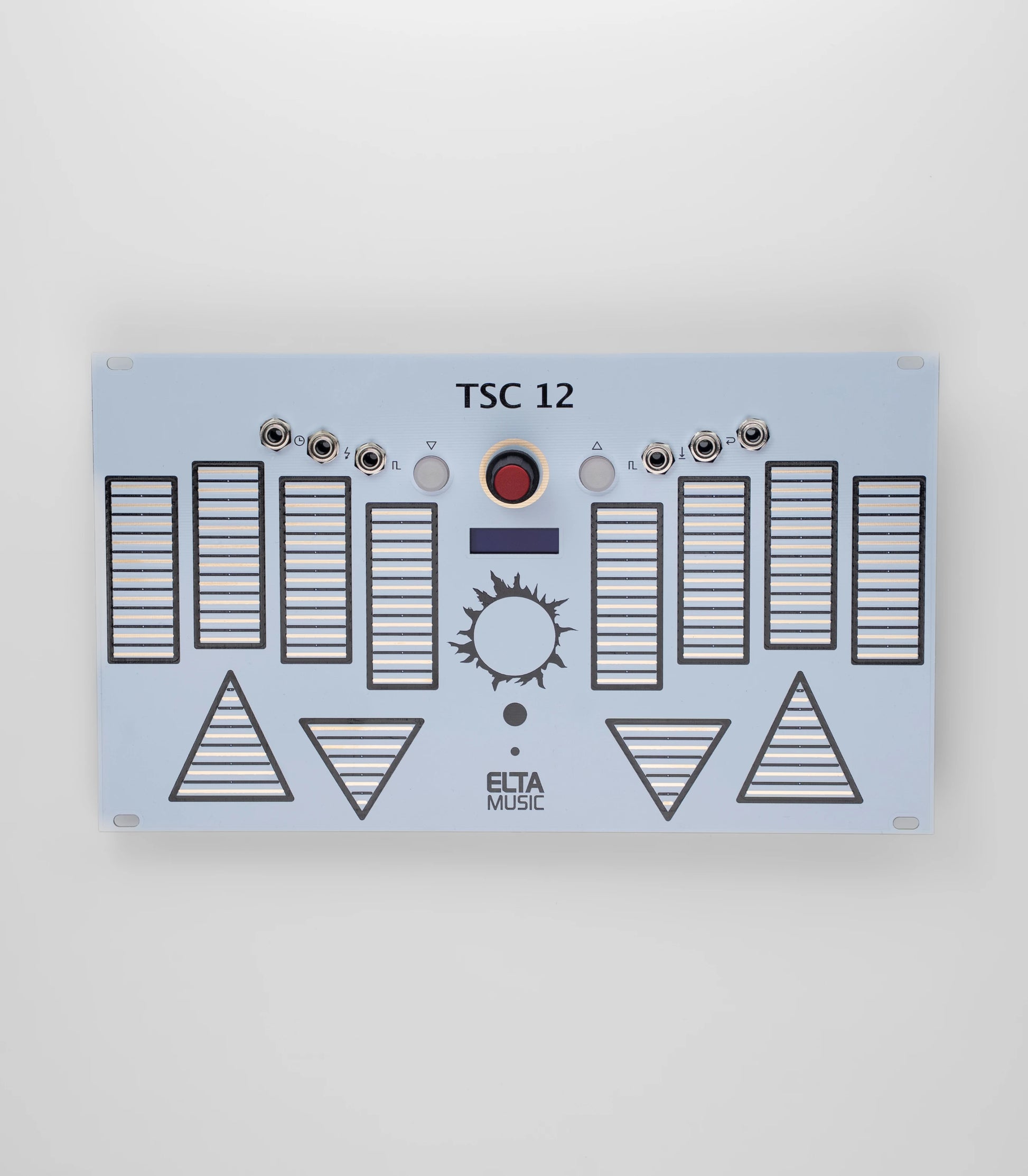

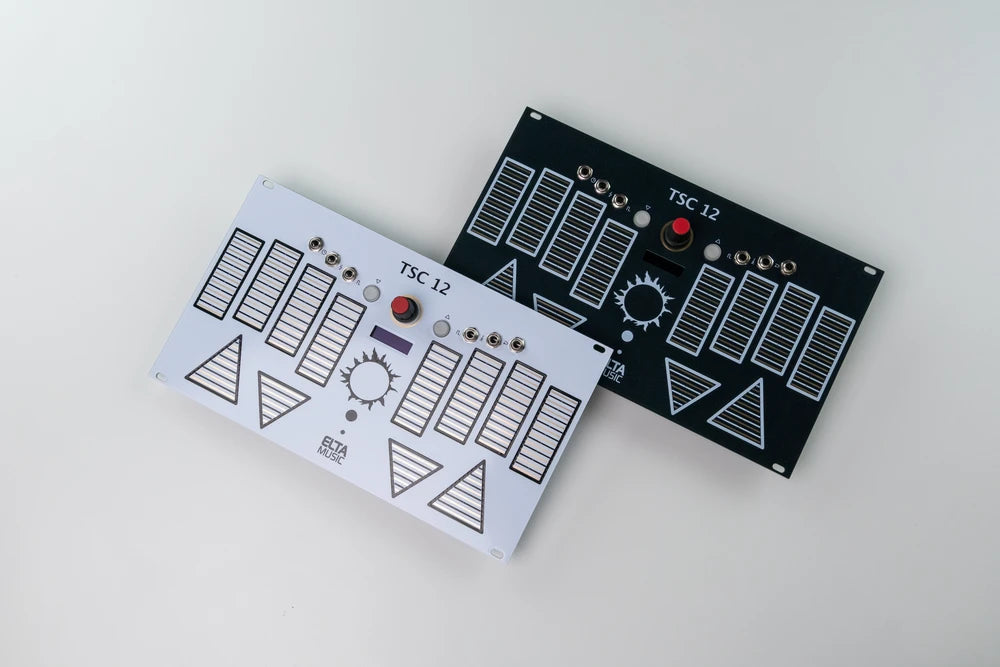

Elta Music TSC12 Touch Sensitive Eurorack Module

Bring human physical expressiveness, fluid movement, and organic gesture control directly into your modular frameworks. The Elta Music TSC12 (TSC-12) is a premium, performance-oriented tactile touch surface and multifunctional control surface module engineered to bridge the gap between modular voltage routing and live musical playability. Directly adapted from the highly celebrated capacitive keyboard layout found on Elta Music's legendary Solar-42 Ambient Machine, this expansive 44HP module hosts a beautifully laid-out playing grid that transforms structural finger gestures into highly precise Control Voltage (CV), Gate, and pressure modulation arrays.

The TSC-12 module, based on the Solar-42 Ambient Machine keyboard, is a performance oriented touch controller featuring 12 capacitively sensitive plates, equipped with highly accurate Volt/octave outputs, ready to connect to your modular setup also.

• External clock input. When a clock pulse is received the keyboard automatically switches to external clock source. Recommended level: 0 to +5V, though higher voltages are accepted.
• Volt/octave output, ranges over 8 octaves from 0V to +8V. By default the signal present on this output is normalized to the Volt/octave input of the VCOs (VCO A and VCO B)
• 0 to 10V gate output. By default the signal present on this output is normalized to the gate input of the envelope generators controlling the voltage controlled amplifiers of VCO A and VCO B.
• 0 to 10V gate output.
• Control voltage or Volt/octave output, ranges over 8 octaves from 0V to +8V. The signal on this output is determind by
• ‘Behaviour’ and ‘Pressure output’ parameters.
• Arpeggiato reset input. A raising edge on this input resets the arpeggiator to its first step. Recommended level 0 to +5V, though higher voltages are accepted.

The module is anchored by 12 individual capacitively sensitive touchplates that respond instantly to the static electrical charge of your fingertips, completely bypassing the rigid, spring-loaded mechanical resistance of standard plastic keys. Far more than a basic note trigger, the TSC12 functions as a dense compositional brain. It houses an internal multi-mode step-sequencer, a highly customizable arpeggiator engine, variable scale quantizers, and dedicated glide control chains governing Portamento and Vibrato parameters. Whether you are performing fast chromatic riffs or anchoring long, slowly morphing ambient drones, the TSC12 delivers immediate, low-latency physical access to your synthesizers.

Blip Expert Take

The Elta Music TSC12 is the ultimate performance engine for anyone who finds themselves staring blankly at step-sequencer grids wishing their system felt more like an actual playable instrument. Because it adapts the unique capacitive architecture from the Solar-42, playing it feels fluid, immediate, and heavily improvisational. You can slide across plates to execute polyphonic glides or apply varying finger pressure to dynamically modulate destination parameters like filter cuts or envelope lengths on the fly.

Critical Studio Note: Take a close look at the grounding advisory in the tech specs. This module relies heavily on robust electrical grounding paths to accurately read skin capacitance. Standard, cheap "Mean Well" style wall-wart power switching units can sometimes cause trigger instability. We highly recommend paring it with high-grade, medically isolated, or properly grounded case power supplies to ensure flawless, glitch-free tracking on stage.

Who Is This For?

• Improvisational Live Acts: Modular synthesists who want to perform intricate, human lead patterns, real-time fills, and modal shifts without dragging a clunky external keyboard controller to the venue.

• Ambient & Drone Composers: Sound designers chasing deep expression paths via continuous finger pressure, organic portamento glides, and generative arpeggio variations.
